Why are no concrete stresses displayed in the add-on module RF-CONCRETE Surfaces?

Answer

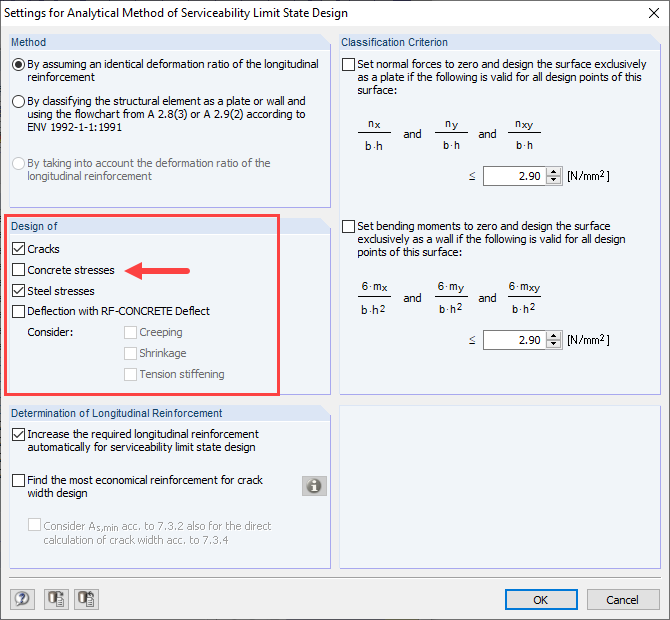

If you want to display the concrete stress or the corresponding design, select the corresponding point in the “Settings for Analytical Method of Serviceability Limit State” (see Figure 1).

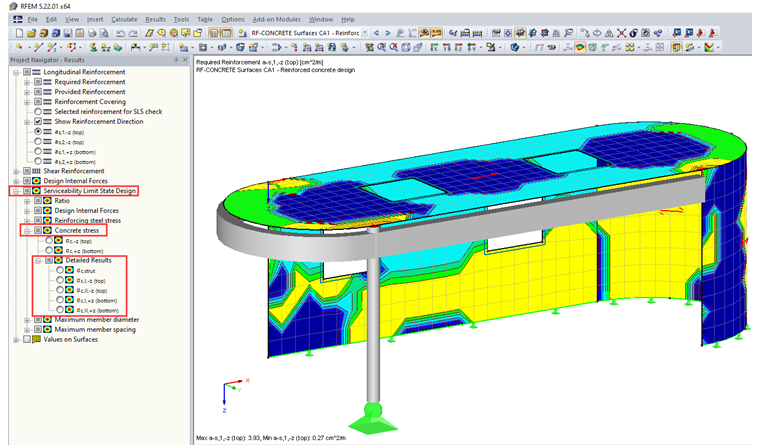

If the concrete stress is calculated, you get another point “Concrete Stress” in the Results navigator. In the intermediate results of concrete stress, you can display the stresses in both the State I and the State II (see Figure 2).

Keywords

Concrete stress Serviceability limit state State I State II
