Answer:

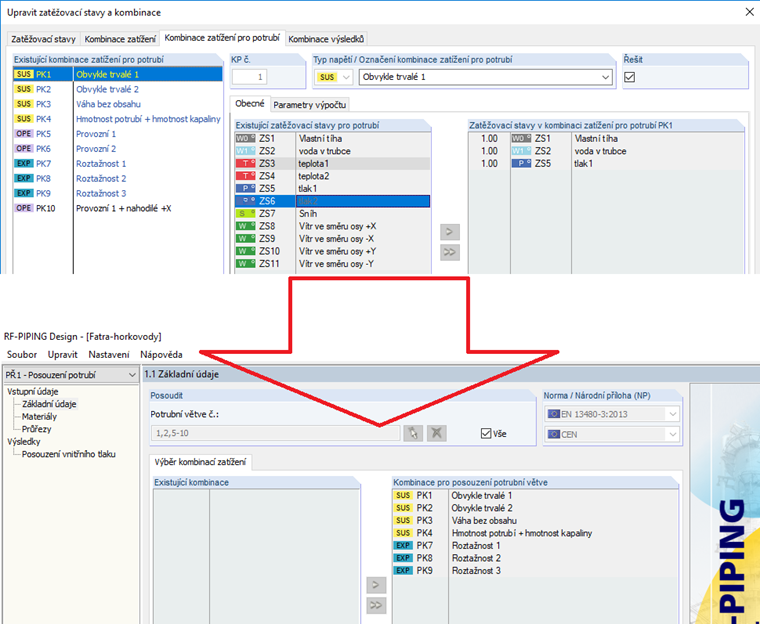

The operational combinations are intentionally not transferred into the add-on module because there is no requirement in the standard to evaluate them. You can see the internal forces or the responses induced by these combinations directly in RFEM.
