For a defined free rectangular load, the selected projection plane of the load does not correspond to the load direction visible in the graphic.

Answer

The projection plane and the load direction are different parameters and independent of each other.

While the load direction represents the actual direction of the acting load, the projection plane, together with the corresponding coordinates of the load position, describes the plane from which the load's position is projected onto the loaded surfaces.

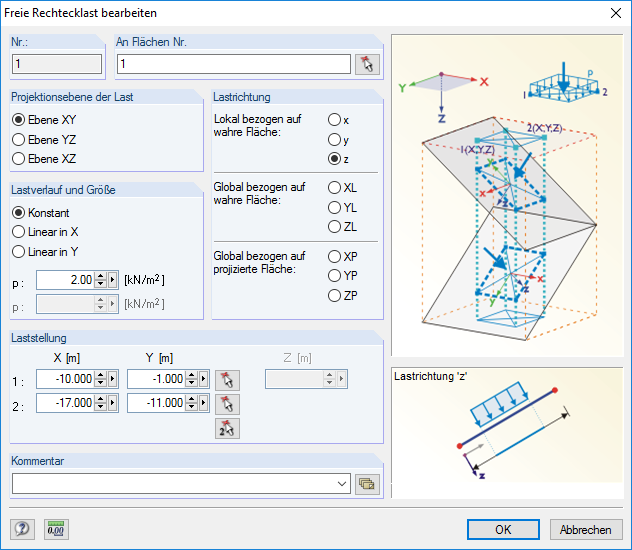

The graphic to the right in the "Edit Free Rectangular Load" dialog box is used for information purposes, see Figure 1.

Keywords

Projection plane Load position Load direction Free Rectangular load
