Is it possible to read out the values from a table to use them for a parametric input?

Answer

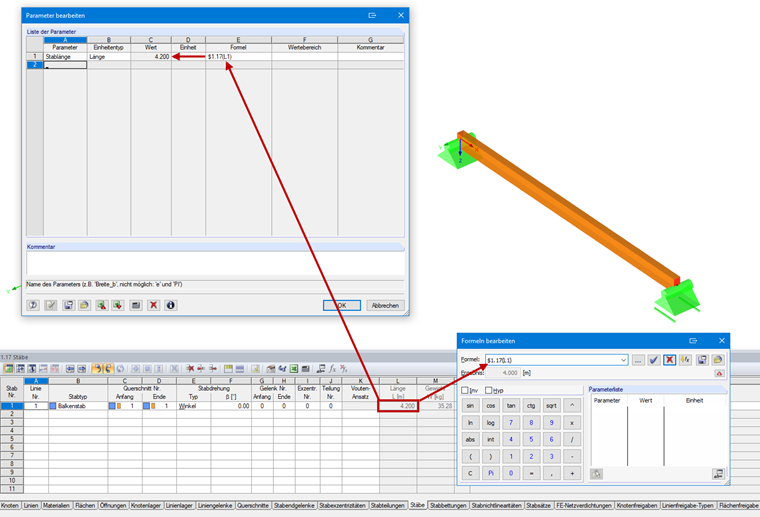

It is possible to select the values from the table by entering "&refcell" with the syntax "$table number(cell description)." Figure 01 shows a member with a length of 4.20 m. The length is shown in Table "1.17 Members" in Cell L1. This value can be used in the list of parameters or in the formula editor. For this, use the following formula for the system shown in Figure 01: $1.17(L1)

It is not possible to read out cells from the result table because of the circular reference.

Keywords

Table Readout cell Parametrization $refcell Formula editor
