Walter Fröhlich Modeling | Loading RFEM

Is it possible in RFEM to enter surface loads on a projected surface in the direction of a user-defined coordinate system?

Answer

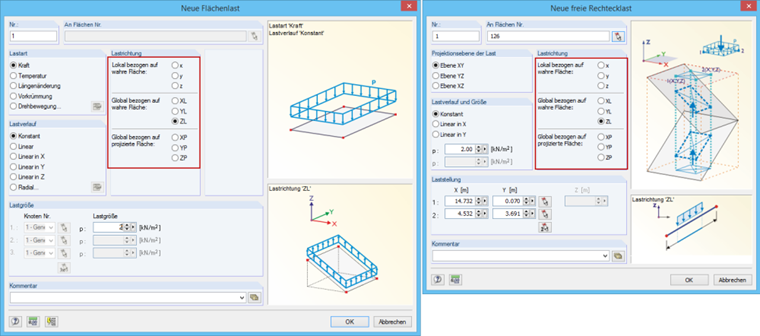

No, both the normal surface loads and the free loads can only be defined on the local surface axis or with regard to the global axis system. It is not possible to specify the load direction with regard to a user-defined coordinate system.

Keywords

Load direction Surface load User-defined coordinate system
