In RF‑LAMINATE, the stress designs are displayed in result windows 2.1 to 2.4.

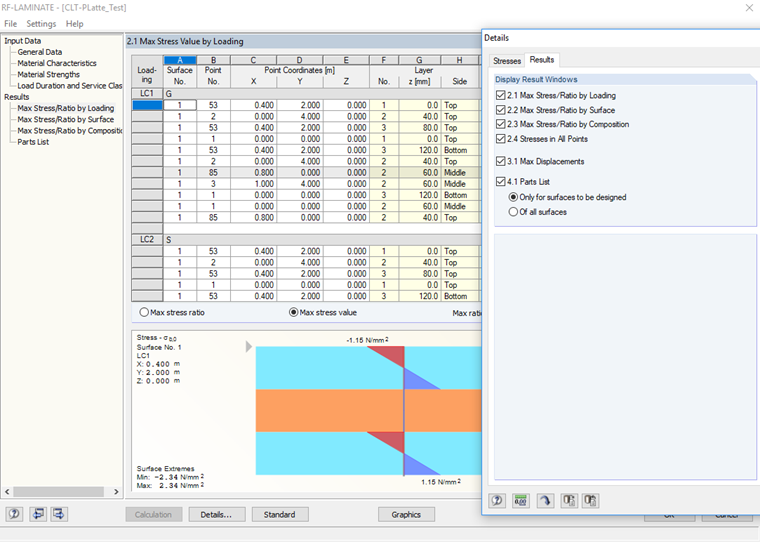

Window 2.4 (Stresses in All Points) is hidden by default, because the amount of data in this mask can be very large. You can select this window in Details - Results (see the image).
