Answer:

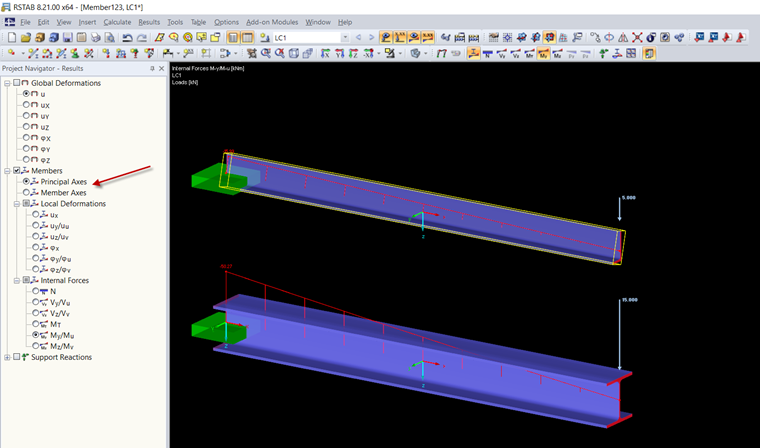

Member internal forces are always displayed with regard to the member axes or principal axes. Displaying results with regard to the global coordinate system or a user-defined coordinate system is not possible.
Question
Is it also possible to display member internal forces with regard to the global coordinate system?
