I get an error message saying that the support of type Wall cannot be defined on a rotated line. How can I fix the problem?

Answer

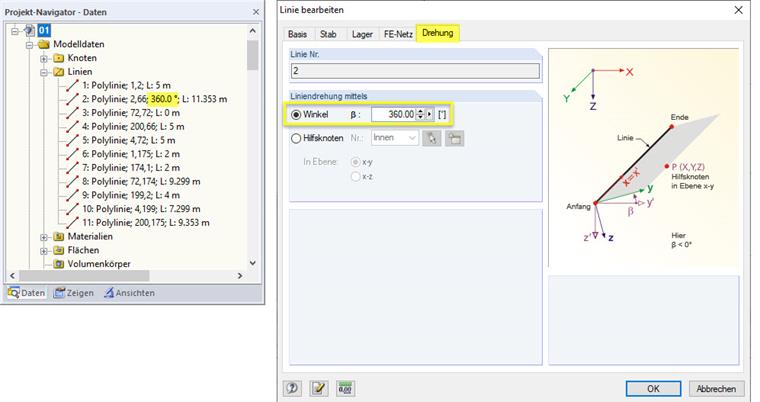

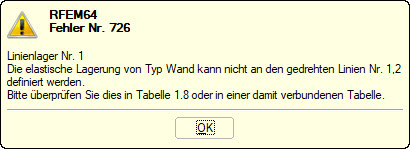

The reason for this message (Figure 01) could be a rotated line imported from CAD, for example. Once you set all rotations of the lines to 0° (Figure 02), the message should no longer appear.

Keywords

Error 726 Rotated Line Wall in Z
