Walter Fröhlich Display Settings RFEM RSTAB

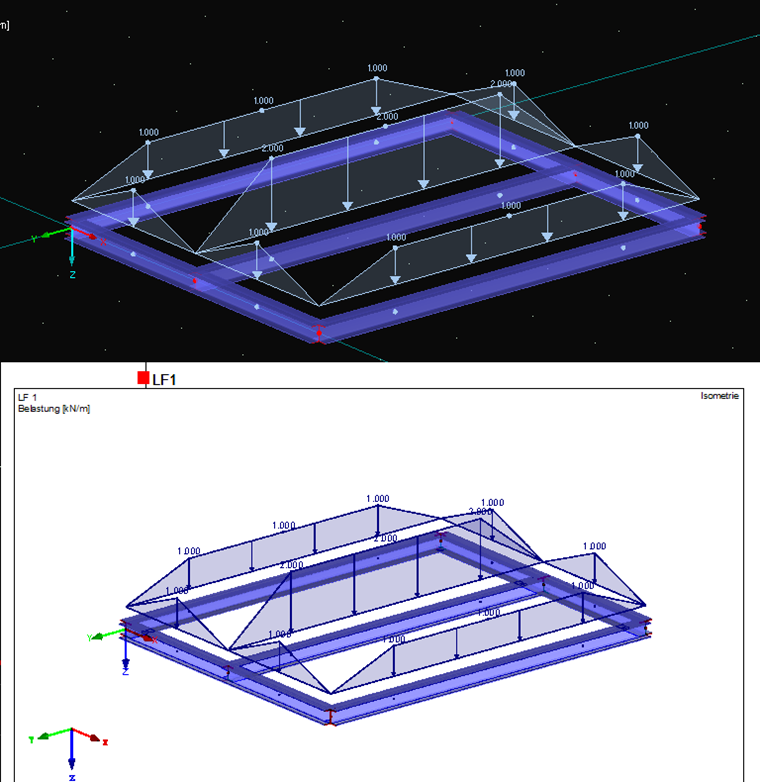

The graphic of the loading in the printout report shows very small load arrows. However, they are displayed in the work window with a size that is sufficiently large. How can I increase it for the printout report?

Answer

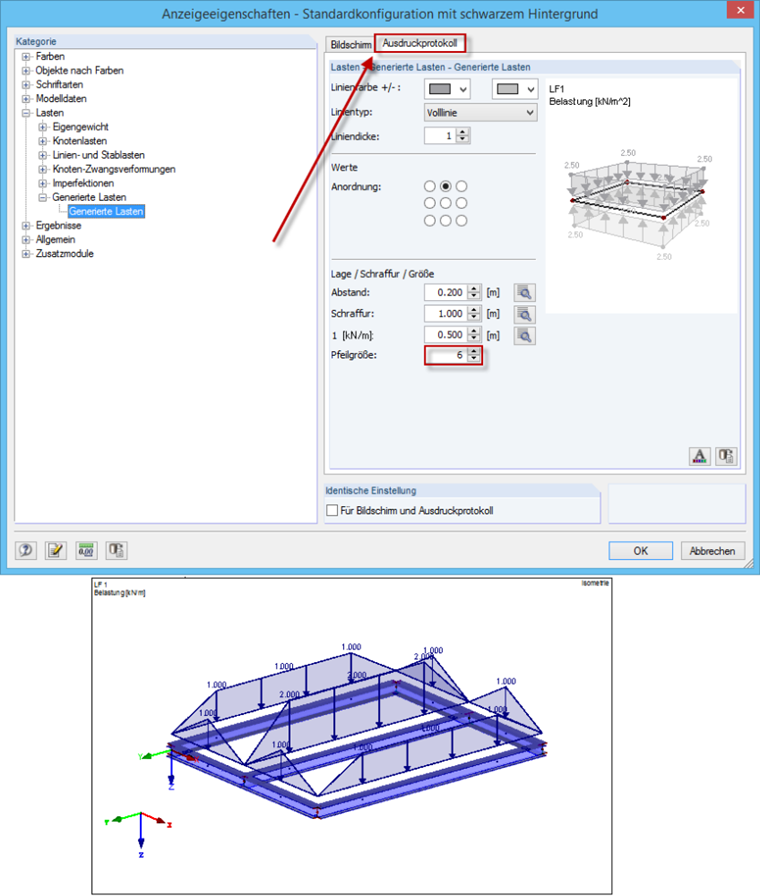

First, make sure that the enlargement of the load arrows in the display properties is also set for the printout report. The arrow sizes can be set between the values 3 to 8. If no improvement is achieved despite changing to the maximum value and reloading the printout report, you should update the graphic designer and the printer driver.

Keywords

Arrow size Load graphic Loading Display Properties
