I would like to use the punching shear design on a column with subsequent downstand beams as wall corner. Perform wall end. However, the module applies an internal column. Is it possible to adjust it?

Answer

RF-PUNCH Pro tries to automatically detect the correct geometry of the puncturing point from the model input and to specify it correctly.

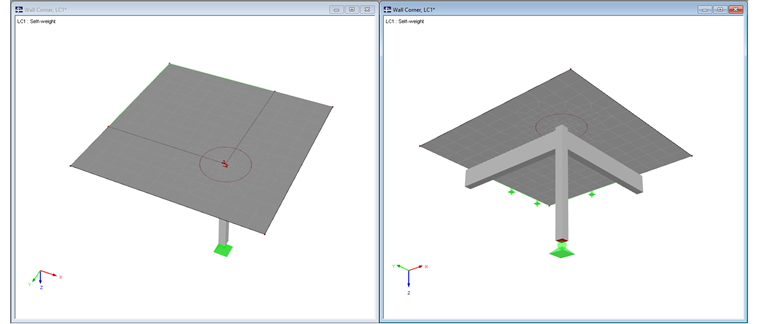

Figure 01 - Wall corner from downstand beams

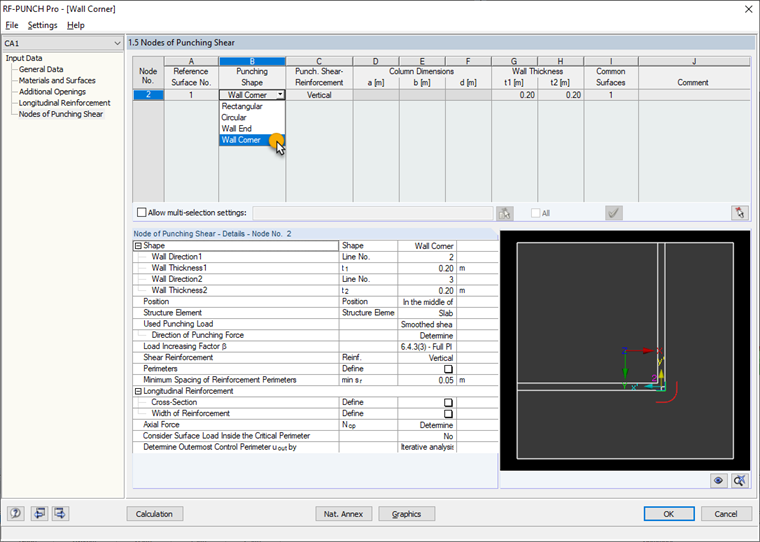

Depending on the input, it may be necessary to adjust the preset geometry. For example, because a column is recognized instead of a punching shear design on a wall corner. This is possible in the input window 1.5 so that the correct punching geometry can be selected, if necessary.

Keywords

Wall corner Wall end Punching Punching shear Internal column
