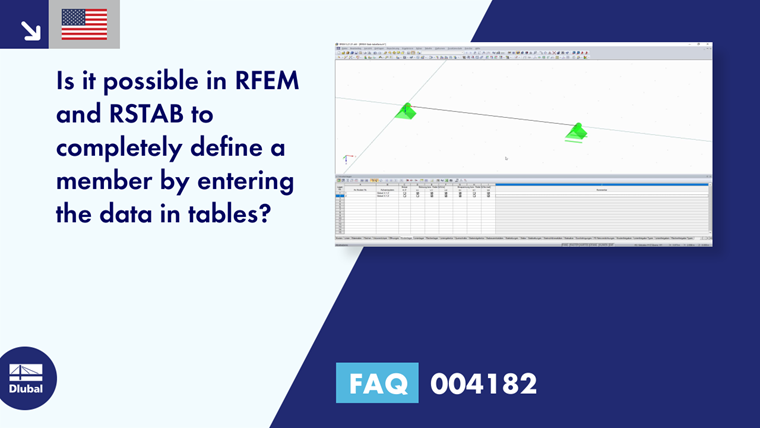

Is it possible to completely define a member using a tabular input in RFEM and RSTAB?

Answer

Yes, it is possible.

You can enter all the data necessary for:
  • Nodes
  • Lines
  • Materials
  • Cross-Sections
  • Supports
All of them can be entered in the tables provided for this purpose.

If the cross-section description from the Dlubal cross-section library is known, then this can also be entered directly in column A in Table 1.13. Otherwise, you can use the cell to open the cross-section library.

This is also possible in RSTAB. Here, the input of the line is not needed. It is only necessary in RFEM.
