I am trying to verify RF‑CONCRETE Surfaces on the basis of the results of the example from the manual. Chapter 2.4.3 describes the determination of the statically required reinforcement. Unfortunately, I cannot create an example that exactly represents these results. Can you send me the corresponding example?

Answer

You can download the corresponding example under the link below.

The results shown in Figure 2.39 in the manual of RF‑CONCRETE Surfaces come from the reinforcement in the bottom position in Grid Point R27 - see the following figure with the design details for this point.

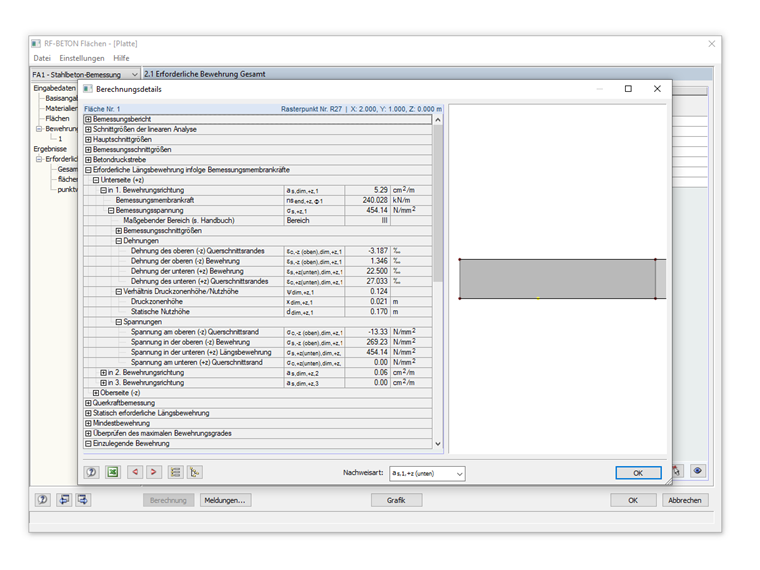

Figure 01 - Design Details with Results from Example in Chapter 2.4.3 of Manual
