I cannot find a cross-section from an older version anymore. Has this been removed?

Answer

In all probability, the desired cross-section is a cross-section of an old standard. The default settings only display the cross-sections of valid standards.

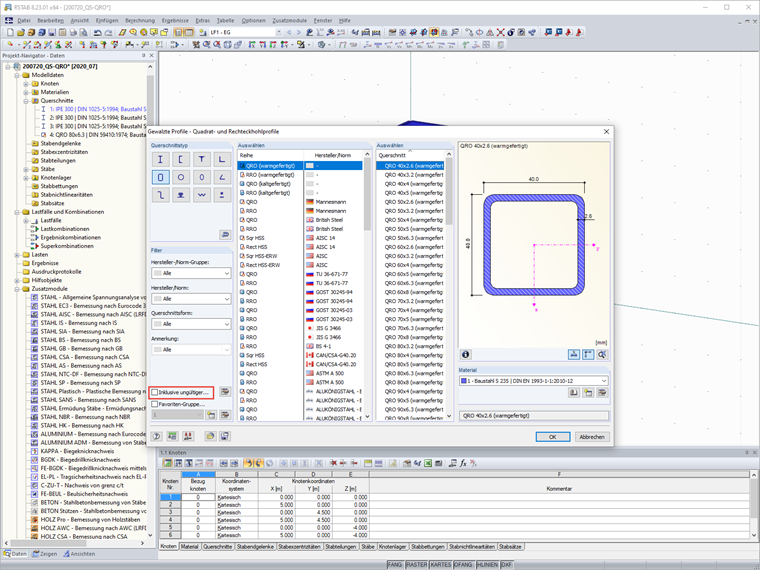

Figure 01 - Cross-Section Selection - Default Settings

If the cross-sections of old standards are required, they can be displayed by using the Include invalid ... check box in the Filter section. The cross-sections of invalid standards are marked in red.

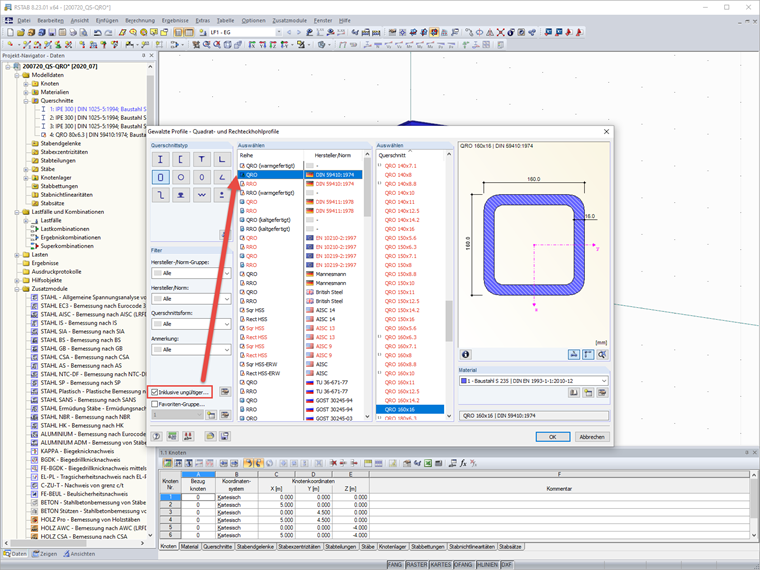

Figure 02 - Cross-Section Selection - Include Invalid Standards

Keywords

Cross-section Old standard Include invalid
