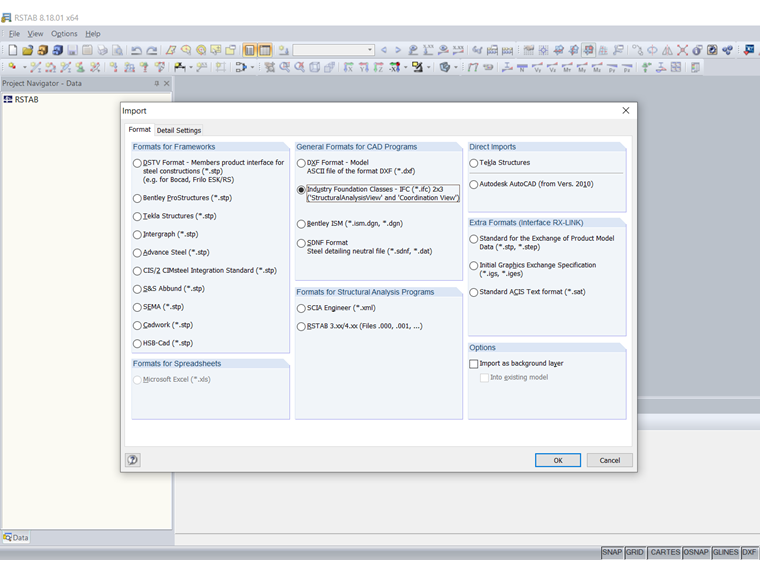

In RSTAB, the import formats shown in Image 01 are available, and in RFEM, the import formats shown in Image 02 are available. To open the dialog box for importing a file, use the menu File → Import.
Furthermore, there are direct interfaces to other numerous applications. A detailed overview of the interfaces is available on our website, Building Information Modeling (BIM).
