Import of Line Grid Coordinates from Excel

Is it possible to import the coordinates of a line grid from Excel?

Answer:

You can import the values from Excel into a line grid using Copy (Ctrl+C) and Paste (Ctrl+V).

First, copy the desired values in Excel using Ctrl+C. Then, click in the target area in the table of the line grid. You can then insert the values using Ctrl+V. Answer the "Replace data" query with "All" (Image 01).

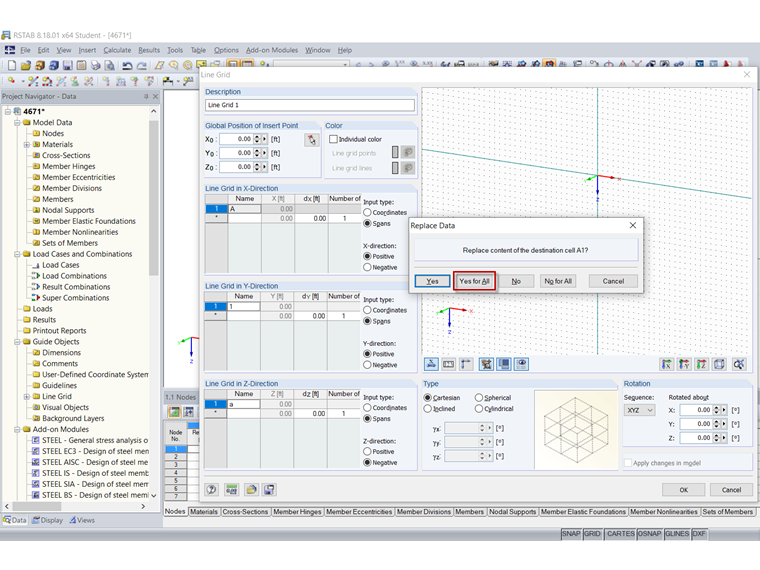

Inserting Values into Table of Line Grid
1 Inserting Values into Table of Line Grid

The video shows how to import the coordinates of a line grid from Excel. Furthermore, it shows how to add another line grid coefficient.
