How can I adjust the size of a graphic in the short form printout?

Answer

The graphic is printed to the monitor at the same scale as the display scale. There is no other setting option in the printout dialog box (Figure 01).

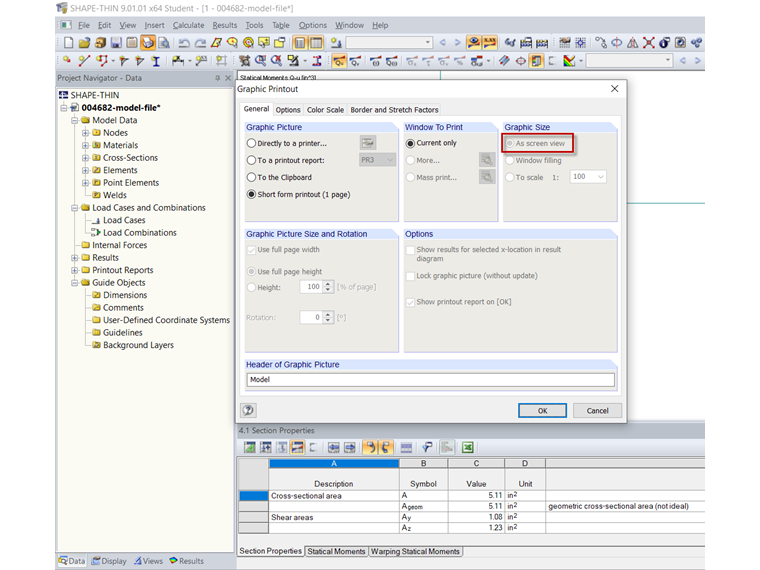

Figure 01 - Short Form Printout - Graphic Size

Therefore, adjust the graphic on the screen accordingly.

Keywords

Graphic size Short printout Short form printout
