I do not obtain any deformations in the results of the calculation with RF‑CONCRETE Surfaces. What can be the reason?

Answer

First, check if the "design of deformation" has been activated in the settings for the calculation of the SLS designs.

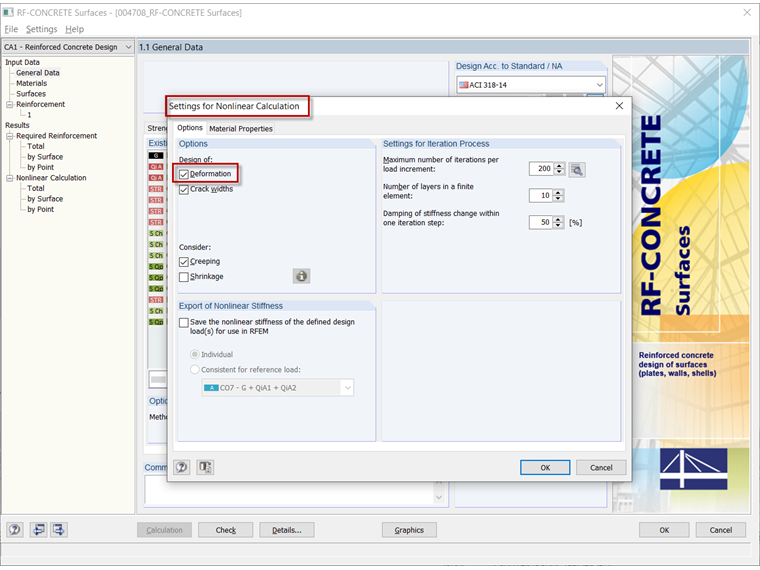

Figure 01 - Settings for Nonlinear Calculation in Serviceability Limit State

Furthermore, check whether a load for the "quasi-permanent" design situation has been specified in the "Serviceability" tab of Window 1.1. By default, the calculation of deformations in RF‑CONCRETE Surfaces (with RF‑CONCRETE Deflect or RF‑CONCRETE NL) requires a quasi-permanent load.

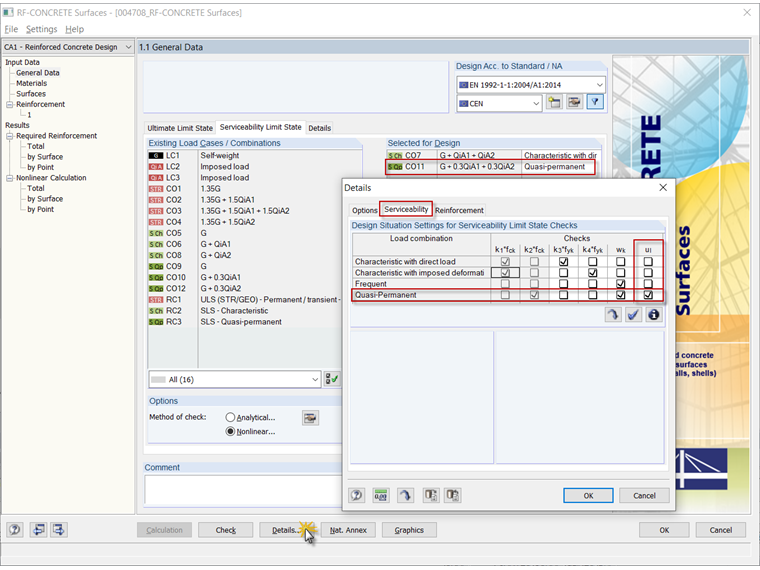

Figure 02 - Selecting Design Situations for Individual Serviceability Limit State Designs
