Answer:
No, there is no automated option for this.

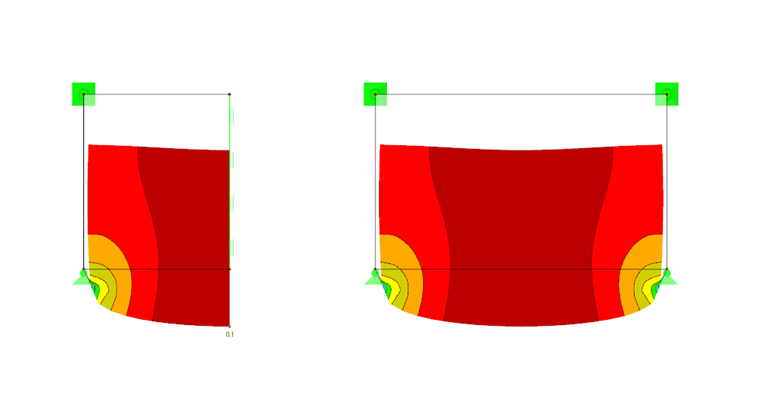

However, there is the option to halve the system and define the corresponding equivalent support; see Image 01.
Question
In RFEM, is it possible to set a symmetry axis for a symmetric structure so it would be necessary to only model and calculate half of the structure?
