Are silos/tanks possible to export from RFEM into Revit?

Answer

Yes, this is possible. Silos/tanks are usually made up of one curved 2D surface. This 2D surface needs to be split into two separate 2D surfaces for the cylinder to be exported into Revit. If it is only made up of one surface, then only half of the cylinder will be exported.

To do this, create a cylinder with one single surface. Then draw a line exactly adjacent to the original line that was create perpendicular to the top and bottom of the cylinder.

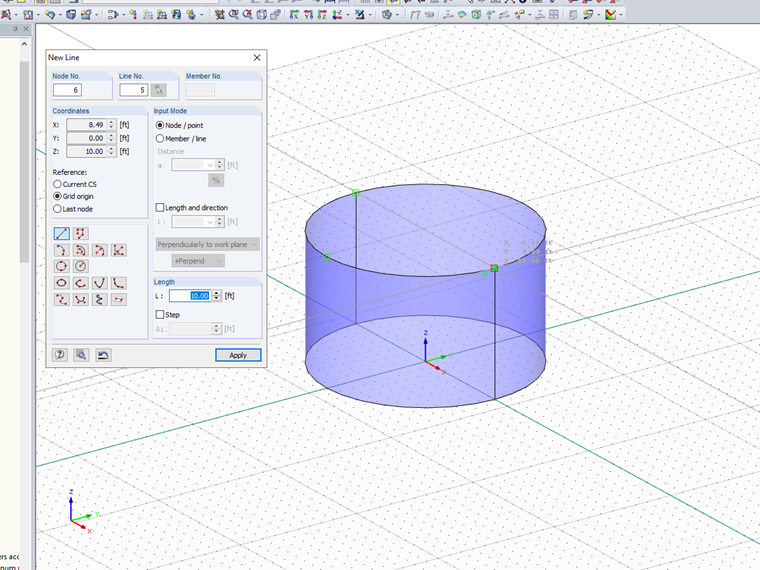

Image 01 - Draw second line to split cylinder

Next, delete the surface and recreate two surfaces using the quadrangle tool.

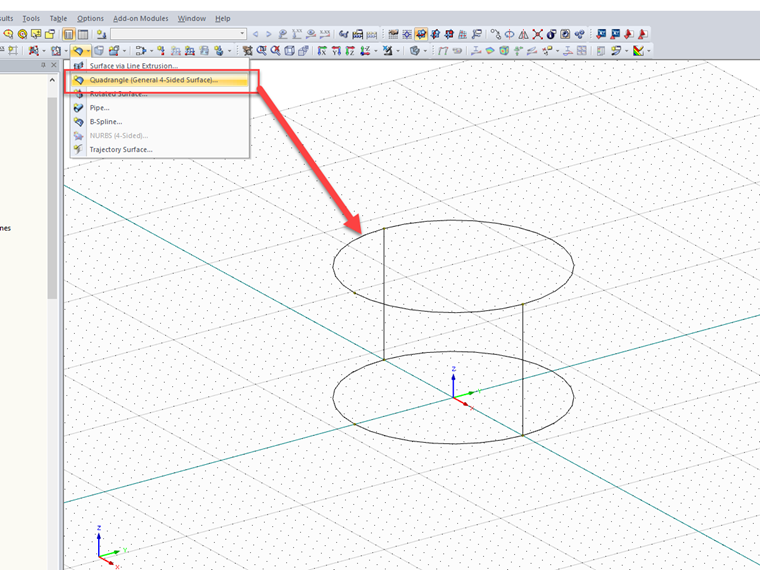

Image 02 - Create two surfaces using quadrangle

This process is also demonstrated in the attached video.

Keywords

Tank Silo Revit BIM Export RFEM Surface
