How can I display the vertical deformation of a column in state II? I cannot find this setting for the serviceability limit state design.

Answer

The deformation uz,local under the "Serviceability Limit State Design" category only refers to the simplified analytical method. However, in the case of a nonlinear calculation, you can display the deformations in the "Nonlinear Analysis" category for the serviceability limit state by using the "Nodal Displacement ug" entry.

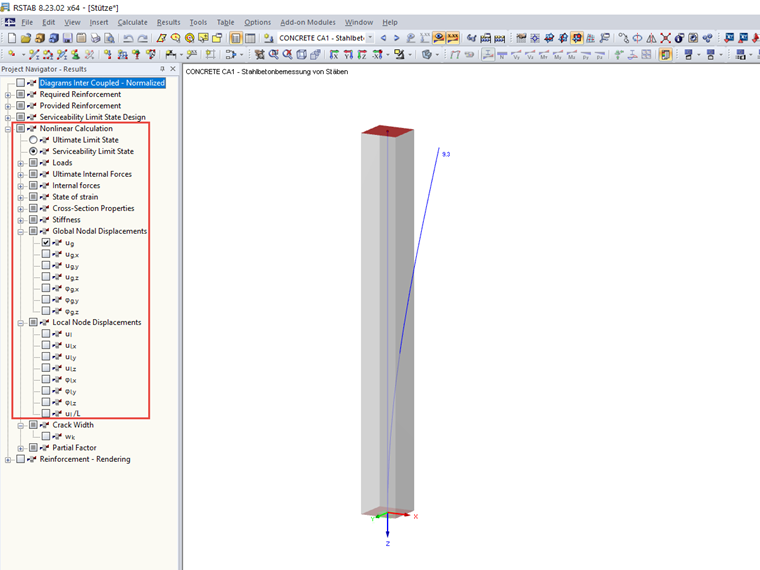

Image 01 - Category "Nonlinear Calculation"

Keywords

State II (cracked) Serviceability Serviceability limit state design SLS Deformation
