FAQ 004971 EN

Helpful Questions & Answers

  • Frequently Asked Questions (FAQs)

I have selected all available members for design in RF-/TIMBER Pro. Why are tapered members not designed?

Answer

Presumably, the option "Design of stress points also for solid rectangular and round cross -sections" is activated in the details.

Since the design of stress points is not allowed for tapered members, this function must be deactivated, see the figure.

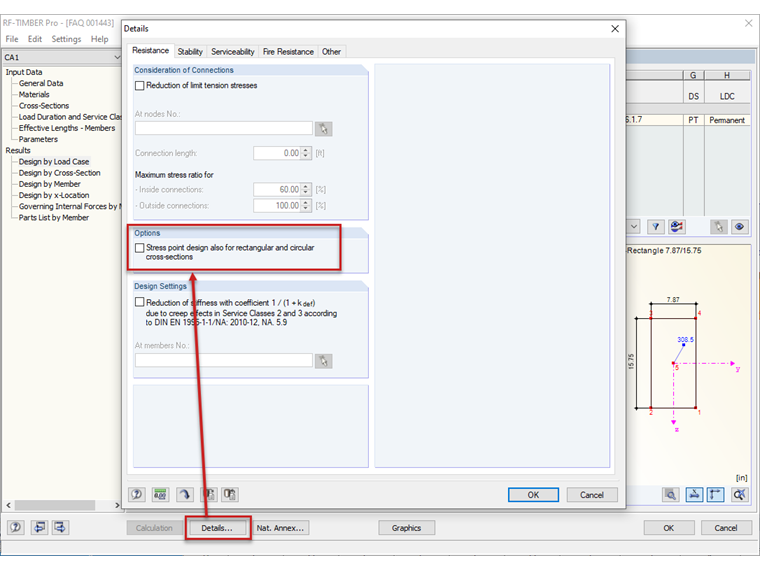

Image 01 - Deactivating Design of Stress Points

If this option is to be considered despite the existing tapered cross -sections, the tapered members have to be treated in a separate design case.

Keywords

Tapered member Taper design
