Answer:

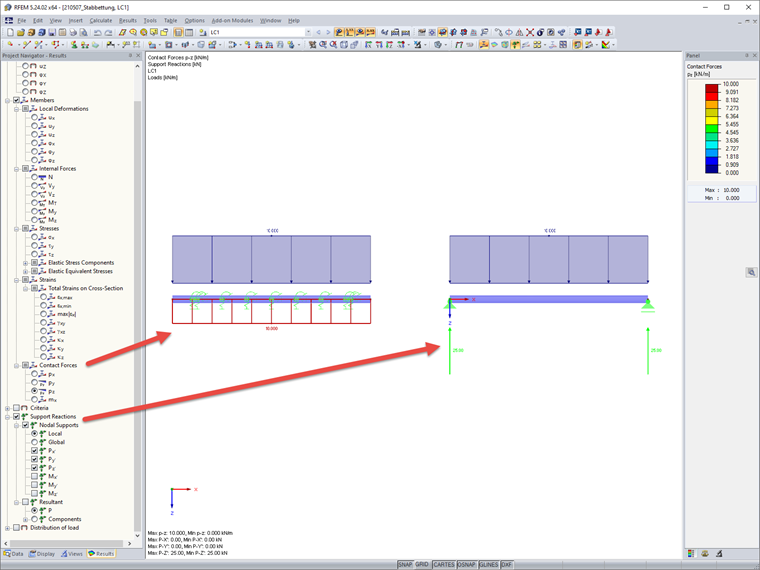

If the model contains members with elastic foundations, the contact forces and contact moments are displayed numerically in Table 4.7.
To control the graphical display of results, select the Members check box in the Results navigator.
