Why do I get Error No. 10203 for a result beam when performing design with RF‑CONCRETE Members?

Answer

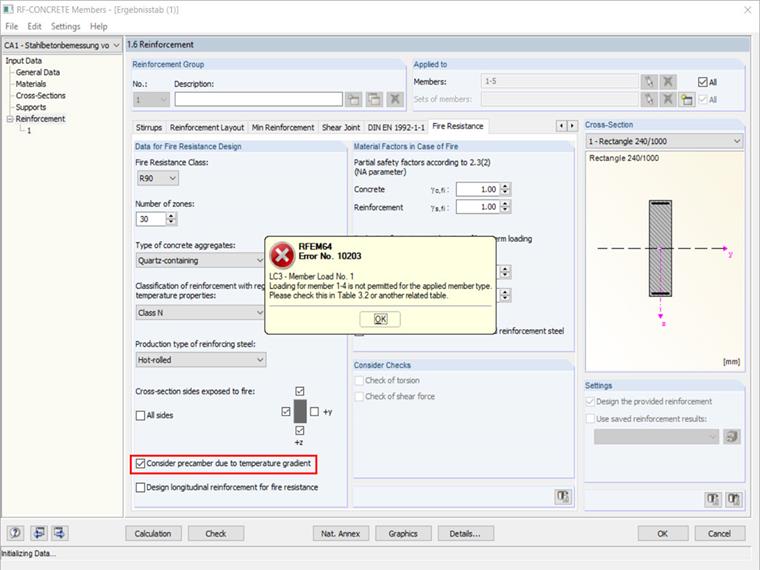

In RF‑CONCRETE Members, you can select the option to consider a precamber due to temperature gradient under the "Fire Resistance" tab in Window "1.6 Reinforcement." For the calculation, the program internally creates a member load as precamber of the cross-section.

However, the result beam is a virtual member that does not have any stiffness nor consider any support, which is not suitable to absorb loads. Therefore, an error message appears when starting the calculation if the precamber due to temperature gradient is selected in RF‑CONCRETE Members for the design of result beams.

Keywords

Result beam Member load Fire resistance Temperature RF-CONCRETE Members Temperature difference Precamber
