Transverse Spacing stmax of Shear Reinforcement

Why does Warning 155 appear as a result of the reinforced concrete design of members for the existing stirrup reinforcement?


Answer:

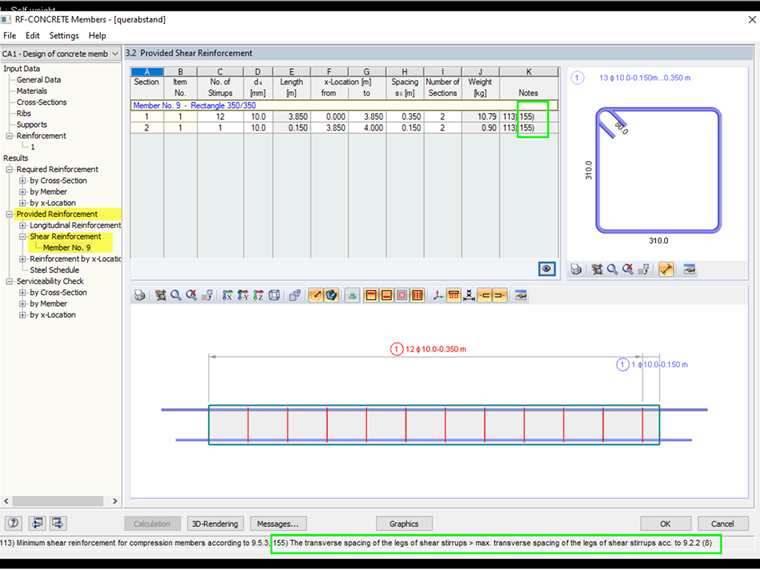

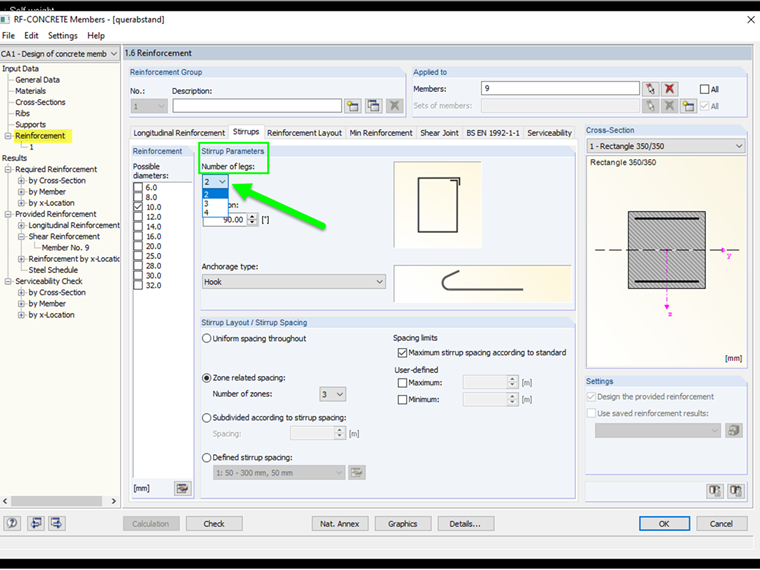

Warning 155 appears once the spacing of the stirrup legs of a beam in the transverse direction exceeds the limit value st,max  given by the standard (see Eurocode 2, Section 9.2.2 [8]). The problem can be solved by increasing the number of stirrup legs under the settings for the stirrup reinforcement.
