Answer:

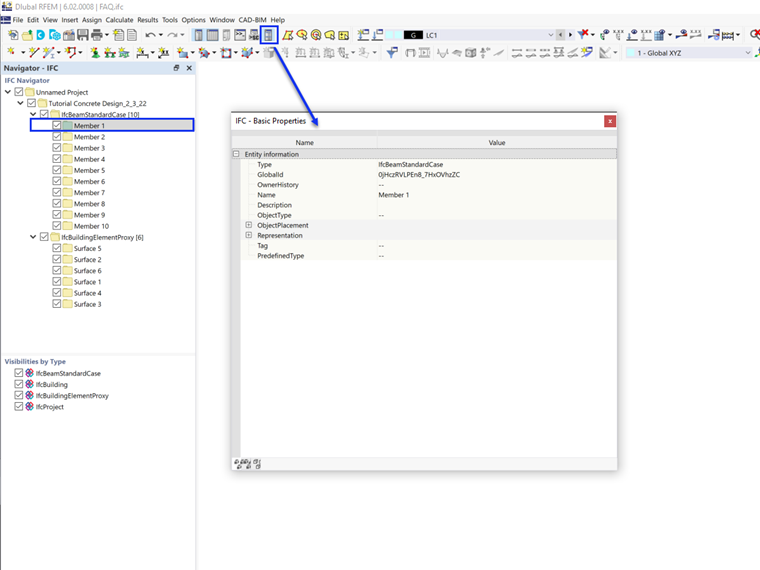

The Object Properties table contains information of certain imported files, such as IFC files. When you select the folder in the IFC Navigator, the relevant information is displayed accordingly.
What is the function of the Object Properties table?
What is the function of the Object Properties table?
