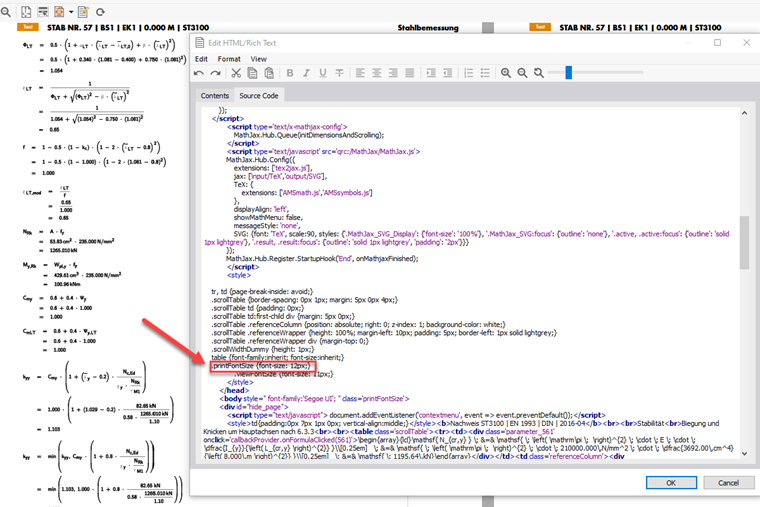

Yes, you can. To do this, right-click on the formula sheet after the formula has been exported to the printout report. Then select "Edit" in the shortcut menu that appears, and you will go to the source code window.
In the line ".printFontSize {font-size: 8px;}", you can increase the number of pixels.
