I have tried to install the Rhino plug-in. However, an error occurred and the plug-in is not loaded.

I have tried to install the plug-in for Rhino 8. However, an error occurred and the plug-in is not loaded.

Answer:

Check your DotNetRuntime settings in Rhino 8.

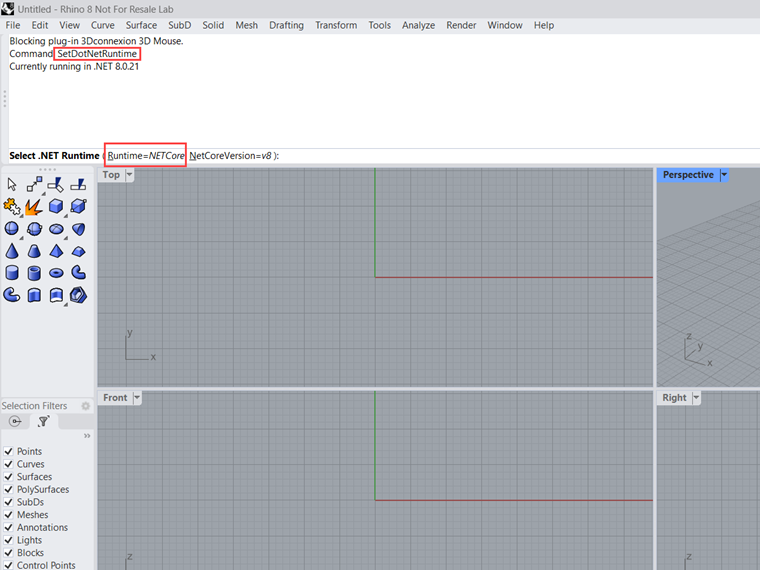

DotNetRuntime Setting in Rhino 8
DotNetRuntime Setting in Rhino 8

The Dlubal plugin for Rhino 8 is compatible with the .Net version ‘’'NET Core'‘’.
If the .NET version ‘’'NET Framework'‘’ is used in Rhino 8, it is necessary to install the latest plugin version 7.XXX.XX.X.

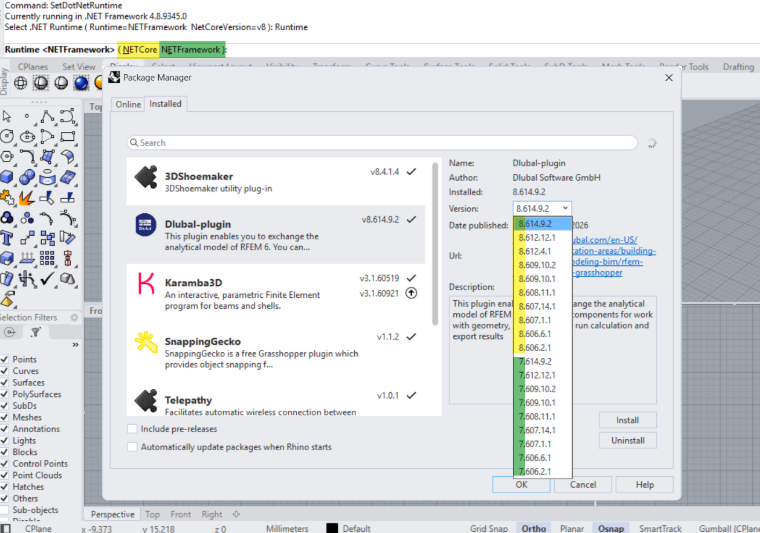

Runtime setting in Rhino
Runtime Setting in Rhino
Important

Check whether older Grasshopper plug-ins are used – these may not be compatible with activated .NET Core.

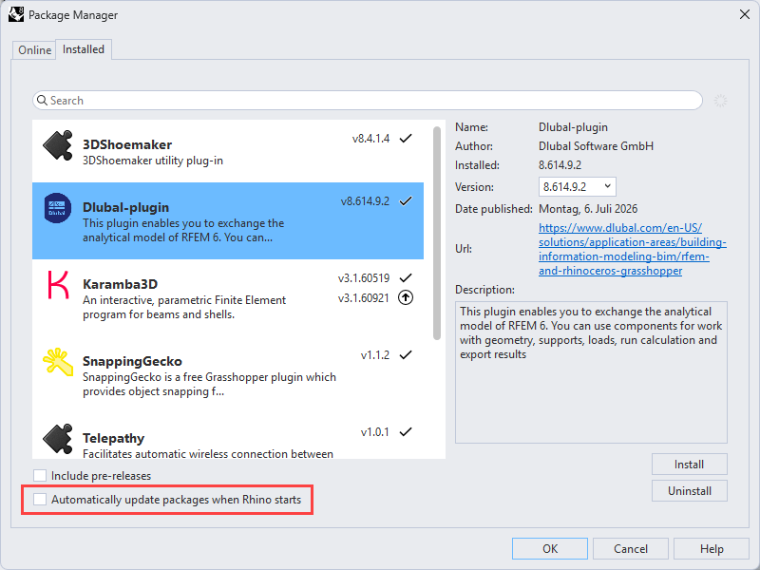

Disable automatic updates in the package manager so that the installed version is not overwritten when Rhino restarts.

Dlubal Plugin Rhino/Grasshopper
Dlubal Plugin Rhino/Grasshopper
