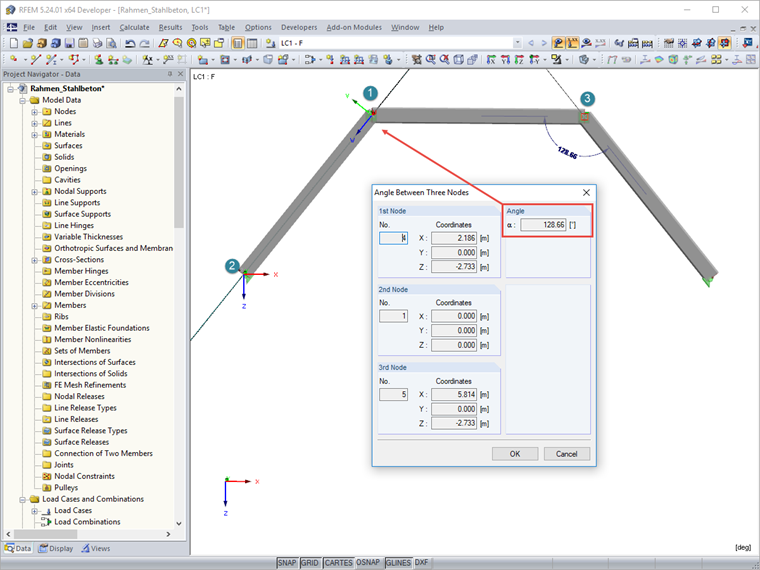

You can see the results in a dialog box, which also provides additional information, such as coordinates or nodes. Furthermore, the selected objects are also indicated in the graphic.
Measuring Distances and Angles
To determine the distance between two nodes or the angle between two objects without using the dimensioning function, you can simply use the "Measure" option on the "Tools" menu. Here, you can also choose between various measure functions.
