To do this, simply use the following function: "Edit" → "Select" → "Related Objects."

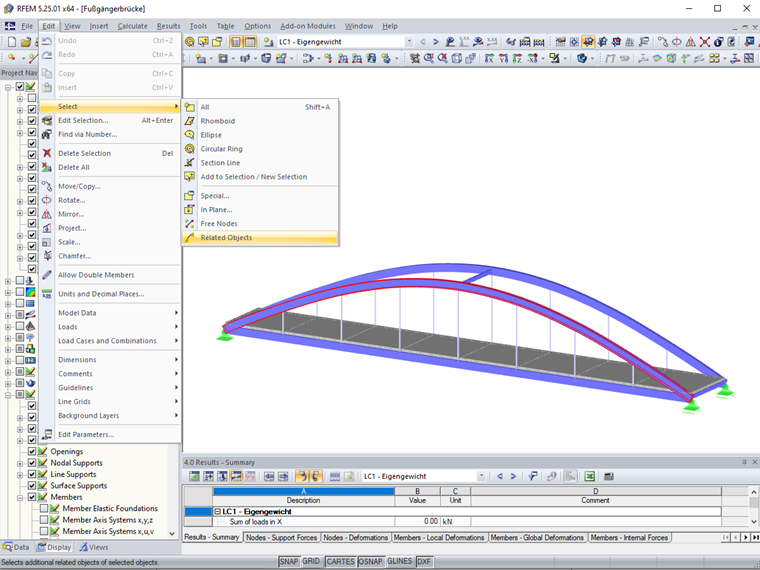

Selecting Related Objects
Sometimes it is necessary to add related objects, such as nodes and lines of a surface, to the selection in order to edit parts of the model.
