Improving Toolbar View
Tips & Tricks
The description of load cases, load combinations, or result combinations is often longer than fits the size of the drop‑down combo box with the load cases etc. in the toolbar of RFEM or RSTAB.

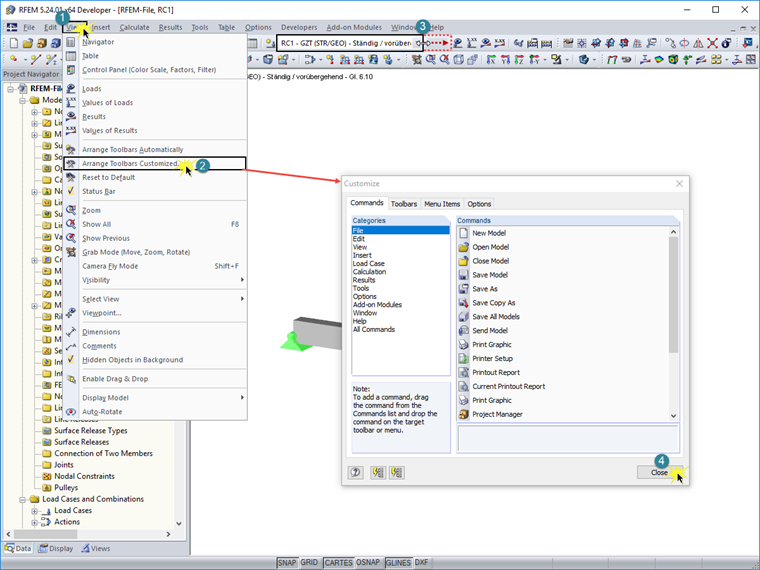

To resize the combo box, select the “Arrange Toolbars Customized” command on the “View” menu. The picture illustrates the procedure in detail.
