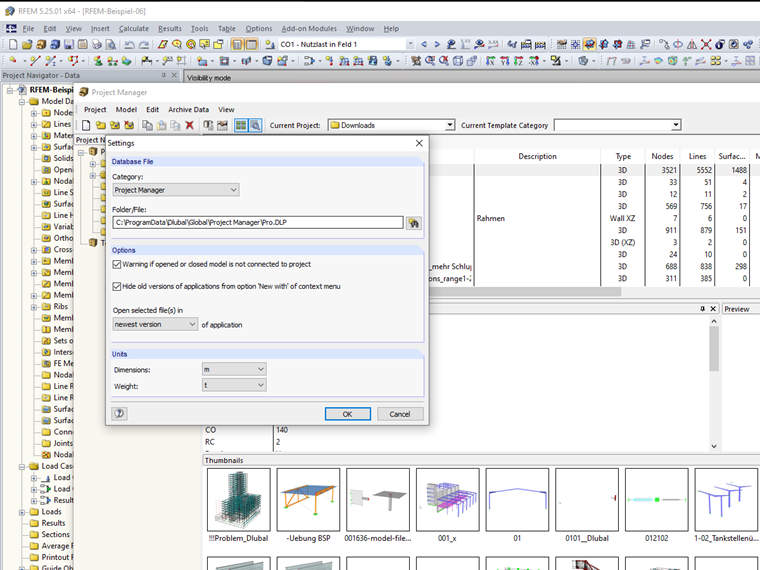

If you do not want to use the Project Manager, you can deactivate the automatic message for the connection of the model with the Project Manager by clearing the relevant check box.

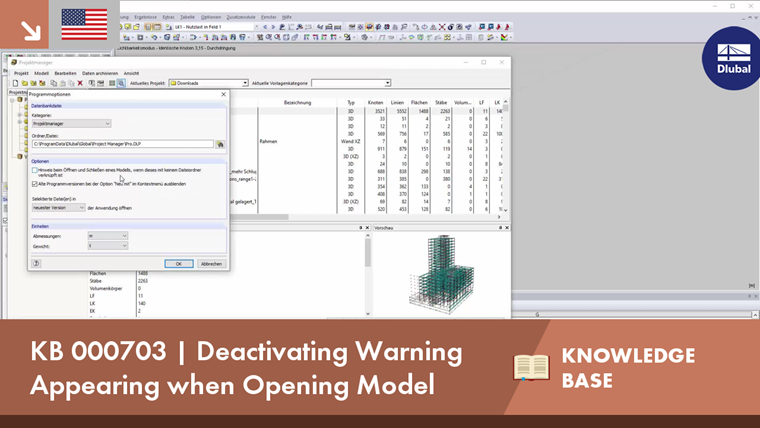

Deactivating Warning Appearing when Opening Model
In RFEM and RSTAB, you can work with the Project Manager. It allows you to create an entire project structure and to connect it with the folders on the local hard disk.
