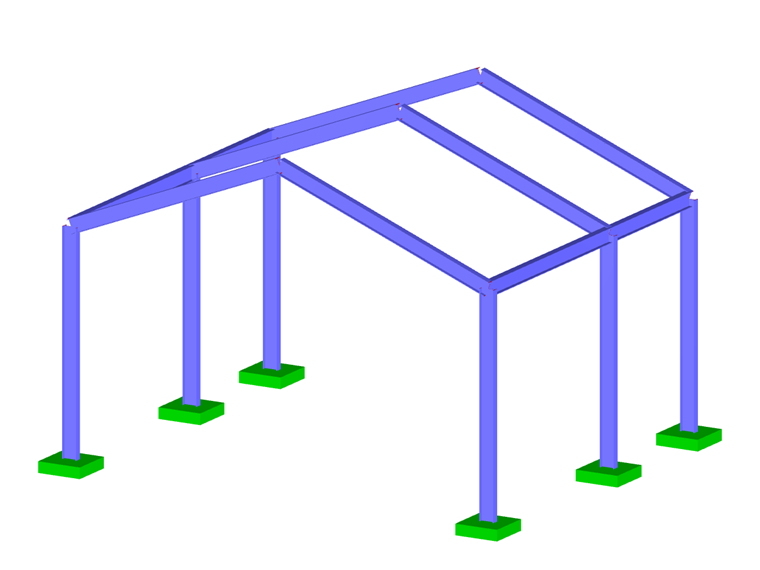

As an alternative, you can display the loads as member loads (separately). In this mode, the loads on the hidden elements are also hidden. In the example, a generated load was created from the wind loads with vertical walls and roof.

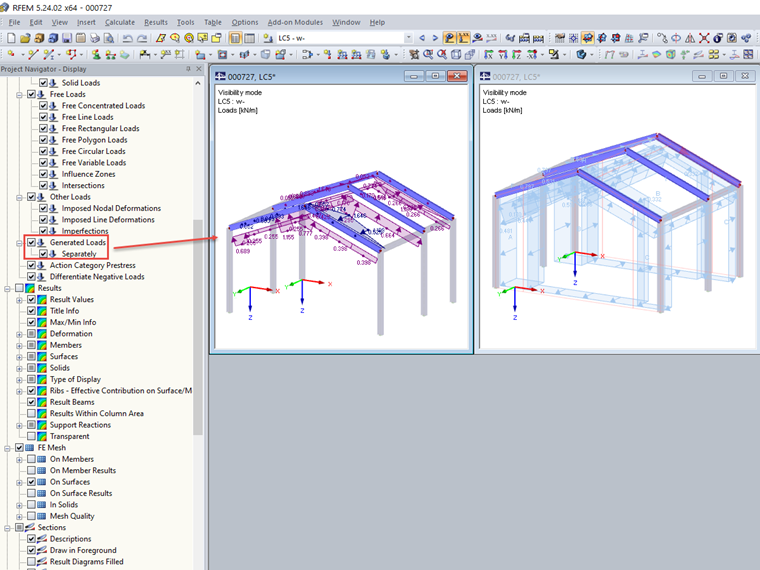

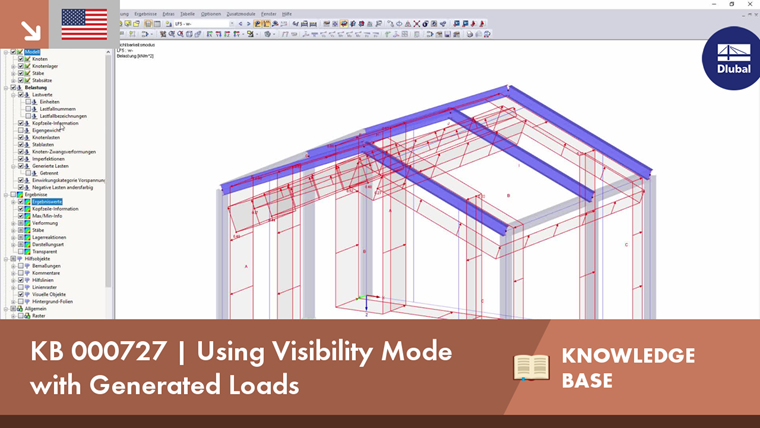

Using Visibility Mode with Generated Loads
If, after defining the generated loads belonging together, you switch to the visibility mode, the loads are also shown on the hidden structural elements.
Author
Mr. Baumgärtel provides technical support for Dlubal Software customers.
