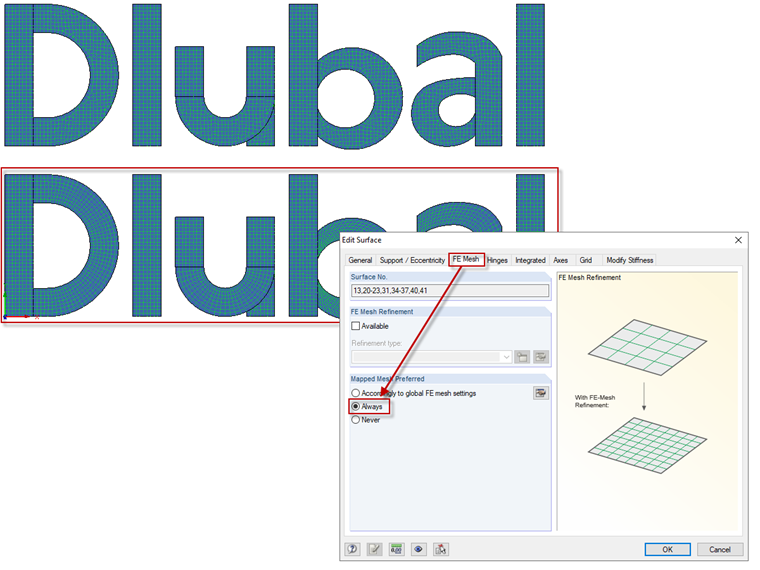

This option can either be assigned to each individual surface using the "Edit Surface" → "FE Mesh" tab or globally, via the menu item "Calculation" → "FE Mesh Settings."

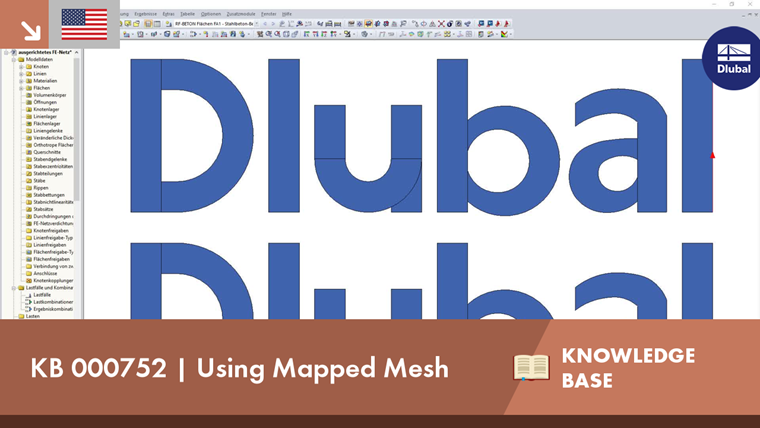

Using Mapped Mesh

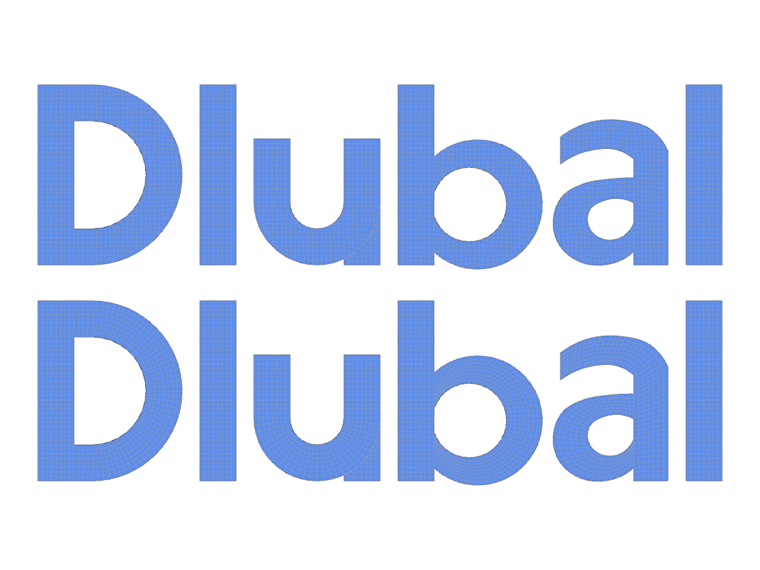

The "Mapped Mesh Preferred" option has an influence on the mesh generation of surfaces with curved and folded outlines. The program tries to align the FE mesh with the boundary lines of the surfaces.
Author
Mr. Fröhlich provides technical support to our customers and is responsible for development in the area of reinforced concrete structures.
