Using Model Check

The model check allows you to search for discrepancies occurring during the modeling.

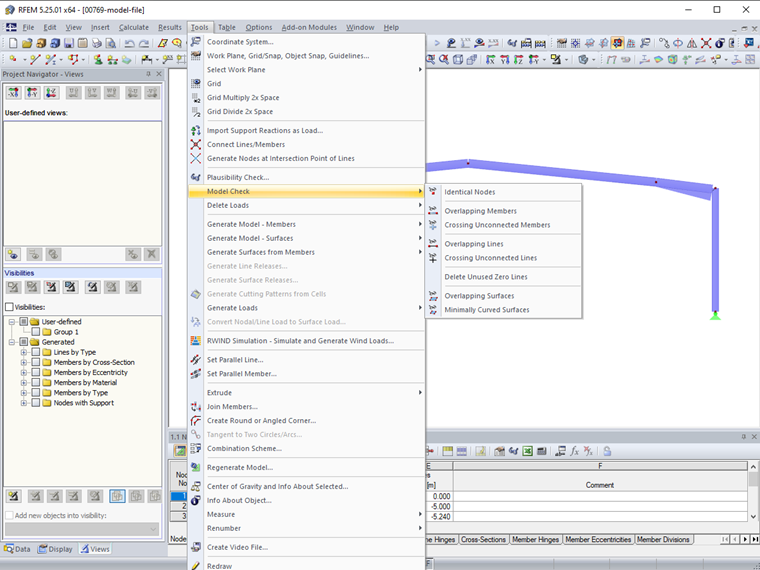

You can select several control options via "Tools" → "Model Check" (Image 01).

Model Check in RFEM
Model Check in RFEM

The results of the model check can be exported to Excel or saved as visibility (Image 02). With the visibilities created in this way, the relevant objects can be found quickly and modeling inconsistencies can be eliminated.

Visibilities - Model Check
Visibilities - Model Check

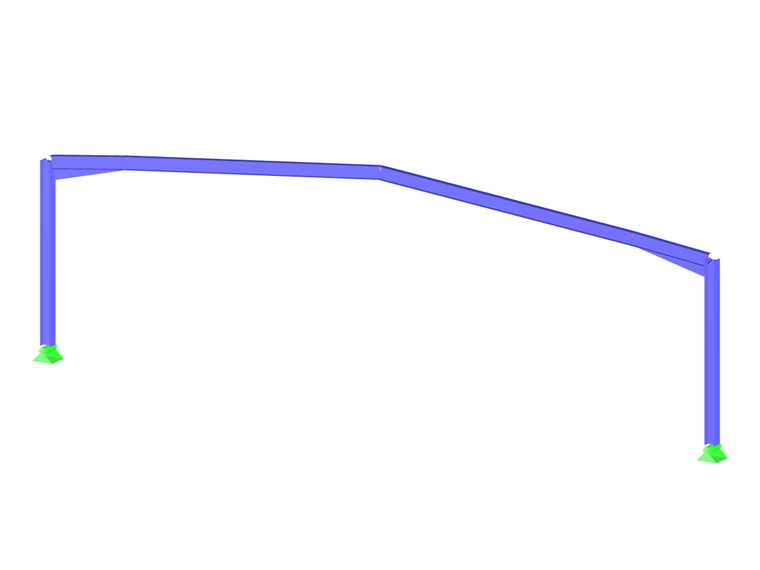

Steel Frame Structure
Steel Frame Structure
