Generating Wind Loads on Walls and Roofs According to ASCE/SEI 7-16

Technical Article

RFEM and RSTAB allow you to easily consider wind load effects on a three-dimensional building according to ASCE/SEI 7‑16 [1]. This article explains the complex theory of entering wind loads in the software. You can find the wind load under 'Tools' → 'Generate Loads' → 'From Wind Loads'.

Figure 01 - Dialog Box 'Generate Wind Loads - Vertical Walls with Roof According to ASCE/SEI 7‑16'

General Parameters

To enter the wind loads on walls and roofs, the following general data from ASCE/SEI 7‑16 is required:

  • Basic wind speed, V, see Section 26.5; Figs. 26.5-1 and 26.5-2
  • Wind directionality factor, Kd, see Section 26.6
  • Exposure category, B,C or D, see Section 26.7
  • Topographic factor, Kzt, see Section 26.8
  • Ground elevation factor, Ke, see Section 26.9
  • Gust-effect factor, G, see Section 26.11
  • Enclosure classification, see Section 26.12
  • Mean roof height, h, see Section 26.2

These general parameters for the determination of velocity pressure are required in the upper part of the dialog box (see Figure 01).

Geometry and Wind Direction

Next, the base and roof geometry have to be entered (see Figure 01 in the middle). In the case of a flat roof, the nodes A and I, B and J, C and K, as well as D and L must rest below each other. In the case of a duopitch roof, the same applies to the nodes A and I, C and J, D and K, as well as F and L. Furthermore, the wind direction should be set on the respective building side. Due to the various cases (see ASCE/SEI 7‑16, Fig. 27.3-8) to be examined, you must always define two building sides.

Load Cases

In order to generate the loads, they must be available in load cases. For this, it is necessary to assign the load cases to the respective load situation (see Figure 01 at the bottom left and Figure 02). The classification is structured as follows:

  • Minimum Design Wind Loads for the respective direction according to ASCE/SEI 7‑16 27.1.5
  • Case 1: Full design wind pressure acting on the projected area perpendicular to each principal axis of the structure, considered separately along each principal axis.
  • Case 3: Wind loading as defined in Case 1, but considered to act simultaneously at 75% of the specified value.

According to ASCE/SEI 7‑16, Table 26.13-1, Note 3, the internal pressure coefficient (GCpi) must be considered positively and negatively in order to take into account the most unfavourable load position. Various signs are indicated by the index +cpi and -cpi in the load cases (see Figure 02, highlighted in yellow and red). Since the wind pressure changes quickly between positive and negative values for the wind direction right-angled to ridge, two values for the external pressure coefficient are specified in ASCE/SEI 7‑16, Fig. 27.3-1. Both must be checked according to Note 3. This is indicated in the dialog box by the index w1 and w2 (see Figure 02, highlighted in purple and green). Basically, all constellations have to be analysed in order to find the most unfavourable state. If you want to exclude the non-governing load cases, you can deactivate the load cases by unchecking the relevant checkbox.

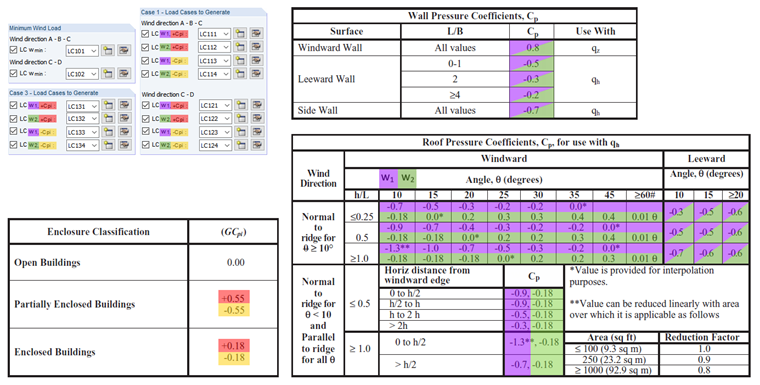

Figure 02 - Assigning Pressure Coefficients to Individual Load Cases

Load Distribution

In the bottom part of the dialog box (see Figure 01), you can specify settings regarding the load distribution. This is explained in detail in the RFEM manual [2], Chapter 11.8.

Reference

[1]  ASCE/SEI 7‑16. Minimum Design Loads and Associated Criteria for Buildings and Other Structures. (2017). American Society of Civil Engineers.
[2]  Manual RFEM 5. (2016). Tiefenbach: Dlubal Software. Download.
