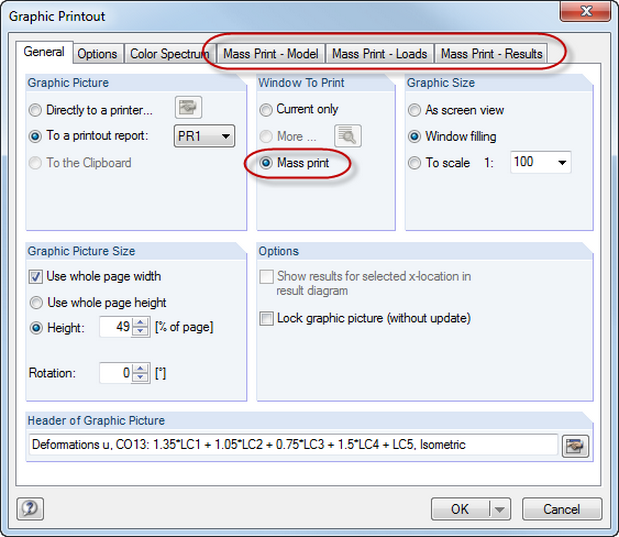

You also have many useful options for printing. You can mass print the model, loads, and results. In this case, it is possible to create graphics from different defined directions. For example, you can print all internal forces as an isometric view with just a single mouse click. This way, you can always keep track of things.
