Visualization of Results

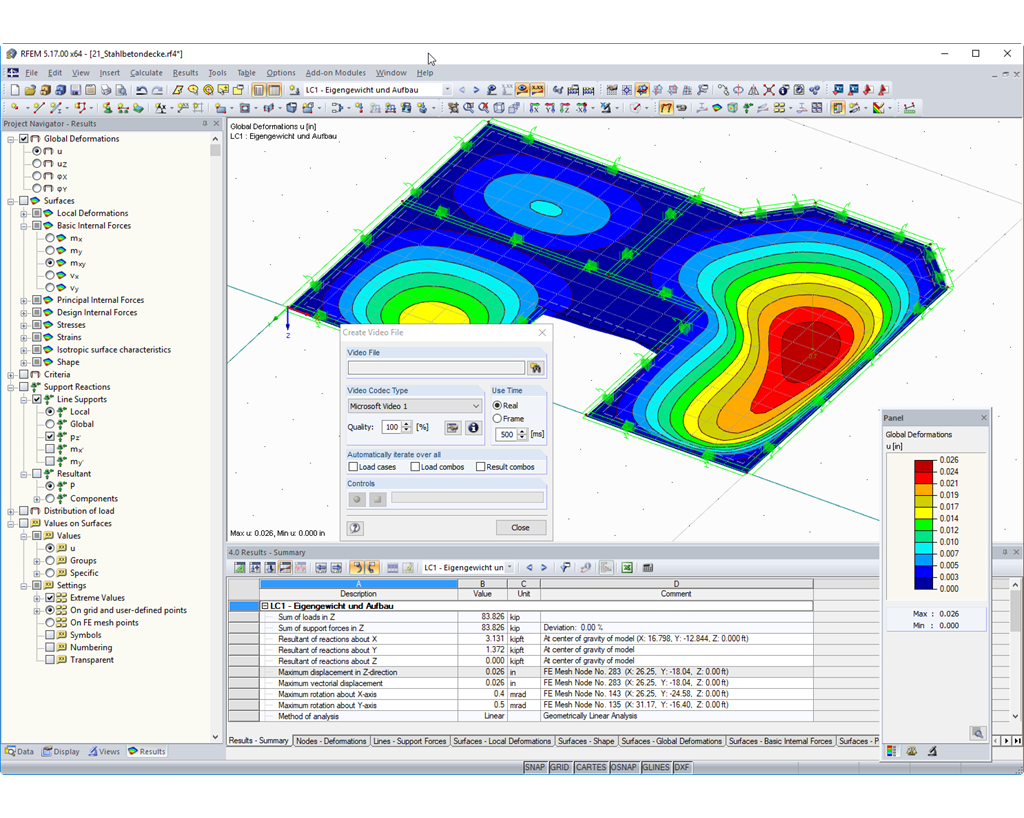

The results on a rendered model are represented by a number of colors in order to easily detect deformations such as member rotation. You can freely define the colors and the range of values in the control panel. Deformations, surface stresses, and internal forces can be animated and saved as a video file.
