RF-/STEEL SIA | Results

Product Feature

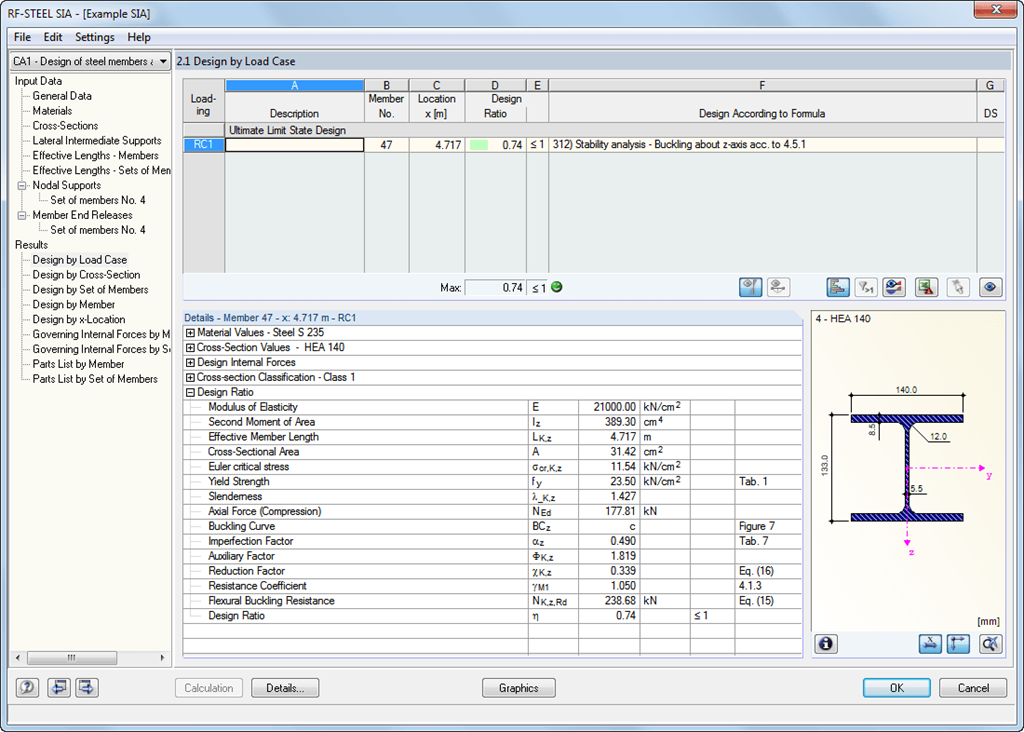

For result evaluation reasons, there are clearly arranged result tables available. The first window shows the maximum design ratios including the corresponding design of each designed load case, load combination, or result combination.

The other result windows list all detailed results sorted by specific subjects in extendable tree menus. All intermediate results along a member can be displayed at any location. In this way, you can easily retrace how the module has performed the individual designs.

The complete module data is part of the RFEM/RSTAB printout report. You can select the report contents and the extent of the results specifically for the individual designs. Graphical result display of the governing design criteria in RFEM/RSTAB provides a quick overview of the design ratios of individual structural components.

Contact us

Contact to Dlubal

Do you have any questions or need advice?
Contact us or find various suggested solutions and useful tips on our FAQ page.

+49 9673 9203 0

info@dlubal.com

RFEM Steel and Aluminium Structures
RF-STEEL SIA 5.xx

Add-on Module

Design of steel members according to the Swiss standard SIA 263

Price of First License
1,480.00 USD
