RX-TIMBER Package | RX-TIMBER Glued-Laminated Beam

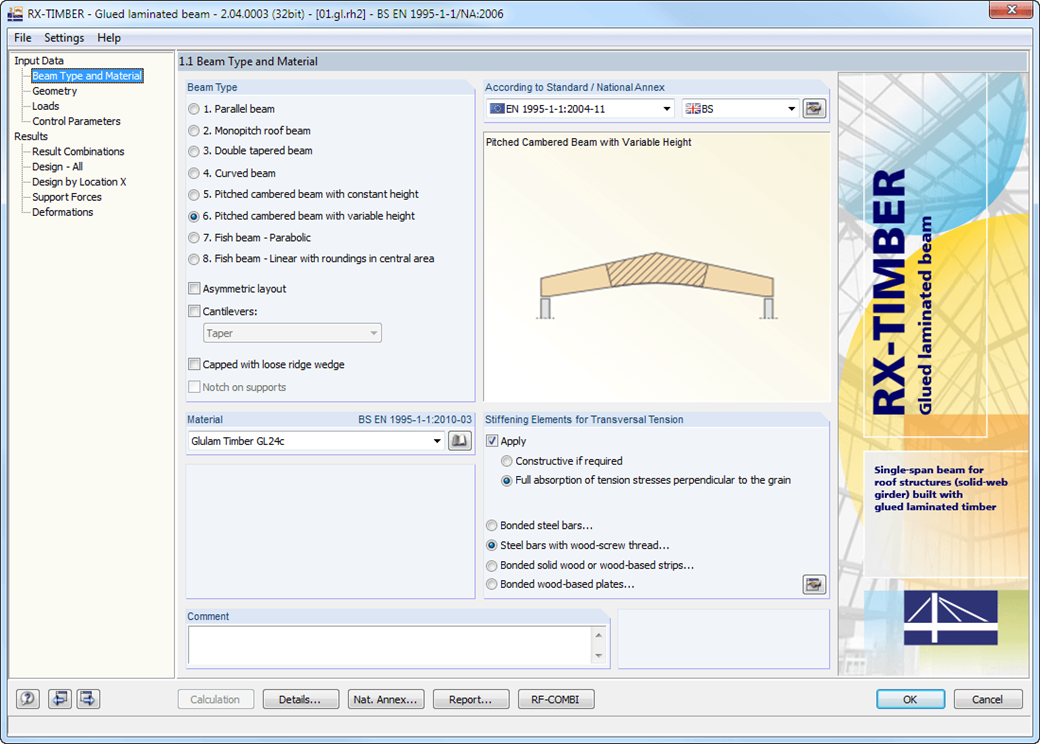

• Design of the following beam types:
  • Parallel beam
  • Monopitch roof beam
  • Double tapered beam
  • Arched beam
  • Pitched cambered beam with constant height
  • Pitched cambered beam with variable height
  • Fish Beam - Parabolic
  • Fish beam - Linear with rounding in central area
• Unsymmetrical beams with and without cantilevers
• Arrangement of a loose ridge wedge
• Optional consideration of stiffening elements for transversal tension
• Two design types available for stiffening elements concerning transversal tension:
  • Constructive if required
  • Full absorption of tension stresses perpendicular to grain
• Calculation of required number of stiffening elements for transversal tension and graphical representation of the arrangement in the beam
• Simple geometry input with illustrative graphics
• Convenient generation of snow loads according to EN 1991-1-3 or DIN 1055:2005, Part 5
• Automatic determination of wind loads according to EN 1991-1-4 or DIN 1055:2005, Part 4
• User-defined load cases and load applications
• Automatic generation of all possible load combinations
• Connection to MS Excel and access via COM interface
• Material library for both standards
• For design according to EC 5 (EN 1995), the following National Annexes are available:
  • DIN EN 1995-1-1/NA:2013-08 (Germany)
  • NBN EN 1995-1-1/ANB:2012-07 (Belgium)
  • DK EN 1995-1-1/NA:2011-12 (Denmark)
  • SFS EN 1995-1-1/NA:2007-11 (Finland)
  • NF EN 1995-1-1/NA:2010-05 (France)
  • UNI EN 1995-1-1/NA:2010-09 (Italy)
  • NEN EN 1995-1-1/NB:2007-11 (Netherlands)
  • ÖNORM B 1995-1-1:2015-06 (Austria)
  • PN EN 1995-1-1/NA:2010-09 (Poland)
  • SS EN 1995-1-1 (Sweden)
  • STN EN 1995-1-1/NA:2008-12 (Slovakia)
  • SIST EN 1995-1-1/A101:2006-03 (Slovenia)
  • CSN EN 1995-1-1:2007-09 (Czech Republic)
  • BS EN 1995-1-1/NA:2009-10 (the United Kingdom)
• Extensive library of permanent loads
• Allocation of a structure to service class, and specification of service class categories
• Determination of design ratios, support forces, and deformations
• Info icon indicating successful or failed design
• Color reference scales in result tables
• Direct data export to MS Excel
• DXF interface for preparation production documents in CAD
• Program languages: English, German, Czech, Italian, Spanish, French, Portuguese, Polish, Chinese, Dutch, and Russian
• Verifiable printout report, including all required designs. Printout report available in many output languages; for example, English, German, French, Italian, Spanish, Russian, Czech, Polish, Portuguese, Chinese, and Dutch.

RX- TIMBER Column designs hinged columns (optionally with elastic head or footing restraint) and brackets (optionally with elastic foundation of the footing column).

For this, circular and rectangular cross‑sections are available in the program.

RX-TIMBER Glued-Laminated Beam designs wide-span glulam beams of eight different beam types (parallel, monopitch roof, double tapered beam, and others).

It is possible to consider typical stiffening elements for transversal tension; for example, bonded steel bars.
