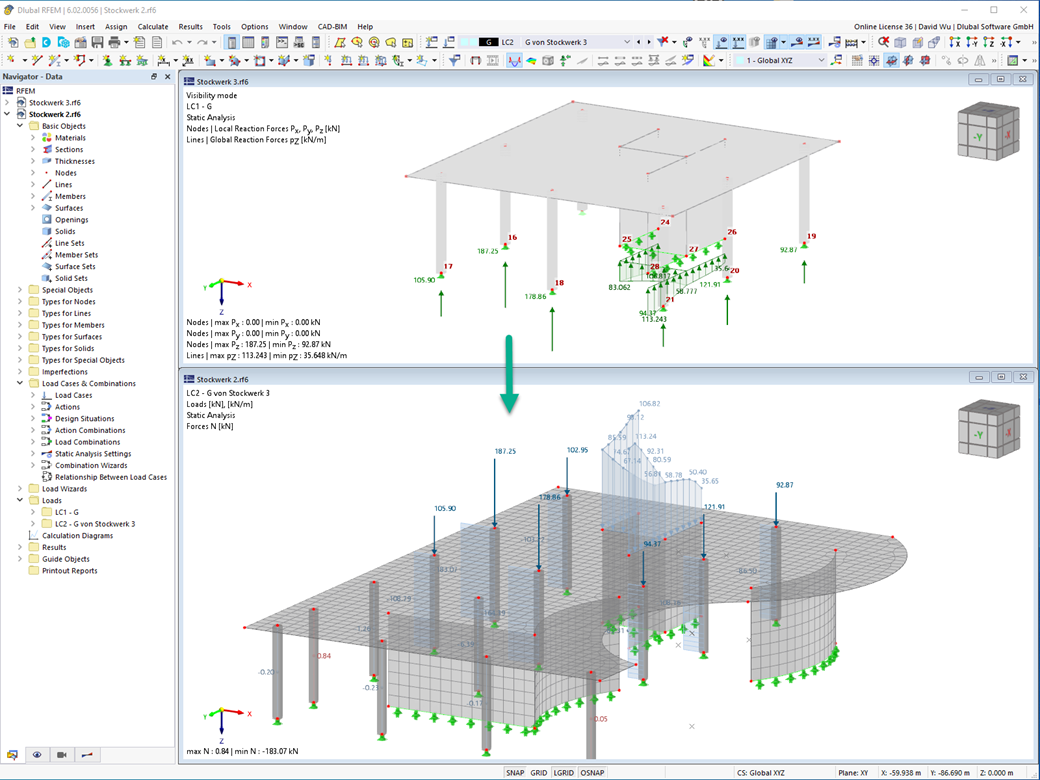

Transfer of Support Forces from Other Model

This function provides you with the option to adopt reaction forces from other models as nodal and line loads.

The option not only transfers the reaction load as an action, but digitally couples the support load of the original model with the load size of the target object. The subsequent changes in the original model are automatically adopted in the target model.

This technology supports the concept of positional statics and allows you to digitally connect the individual positions of the same Dlubal Center project.
