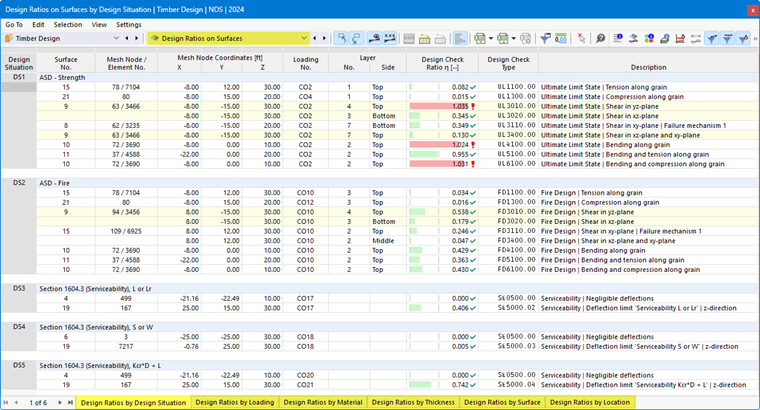

The result tables of the category 面利用率 contain the result data for the performed design checks with the respective utilizations.
The surface results are sorted in the tabs according to the following criteria:
- 荷载 (设计状况, 荷载组合)
- 面属性 (材料, 厚度)
- 对象 (面, 有限元网格点)
面编号
For each design check criterion, the number of the surface that shows the greatest utilization is given.
网格节点 / 单元编号
The number of the finite element mesh node for which the maximum utilization was determined is given in each case. A second number designates the finite element adjacent to the FE node if there are deviating design-relevant internal forces present there.
网格节点坐标
The three columns display the global coordinates X, Y and Z of the FE mesh nodes.
设计状况
This column names the numbers of the 设计状况 for which the individual utilizations are available.
荷载
The numbers of the load or result combinations that are decisive for the respective design checks are given.
层侧
The stresses are examined for the following locations of the surface cross-section:
- 顶部
- 中部
- 底部
You can show or hide the surface axes via the 面的局部坐标系 开/关 entry in the surface context menu. Alternatively, use the '导航器 - 显示' (模型 → 基本对象 → 面 → 面坐标轴系统 x, y, z).
验算准则
This column specifies the design check conditions according to 规范. The degree of the respective utilization is expressed by the length of the colored bar.
验算类型
Each design check is designated by an identifier with a number. For example, the 承载力 design checks according to 欧洲规范 carry the identifier 'UL', and the 正常使用极限状态 design checks carry the identifier 'SE'. The design check type is explained in the column 描述.
验算公式
You can activate this column in the 结果表管理器. It shows the equations from the standard according to which the design checks are performed.
描述
Each design check is explained by a short description referring to the chapter in the standard.
可以通过按钮
或双击该行来显示特定利用率的 验算详细信息。
过滤结果
Chapter 杆件利用率 describes how you can filter the results by 极限状态 and by utilization.
