FAQ 004233 EN-US

11/20/2019

Sonja von Bloh Printout Report RFEM RSTAB

How can the parameter list and formulas be documented in the printout report?

Answer

The printout report provides no way to document used parameter lists and formulas.

However, the parameter list and formulas can be exported to Excel by selecting File → Export. To do this, select the corresponding check boxes in the 'Formulas and Parameters' dialog section of the 'Export Tables to Microsoft Excel - Settings' dialog box (Figure 1).

The export of the parameter list and formulas is also available in the ‘Export Table’ dialog box (Figure 2), which can be opened using the Excel button in the toolbar of the relevant table.

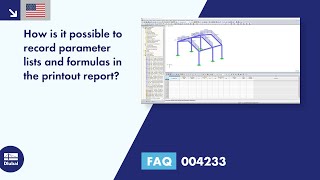

The Excel tables could then be added to the printout report as a text block, for example. This is demonstrated in the video.

Keywords

Parameter Parameter list Formula Excel Printout report Minutes
