How is it possible to record parameter lists and formulas in the printout report?

Answer

The printout report provides no option to record the used parameter lists and formulas.

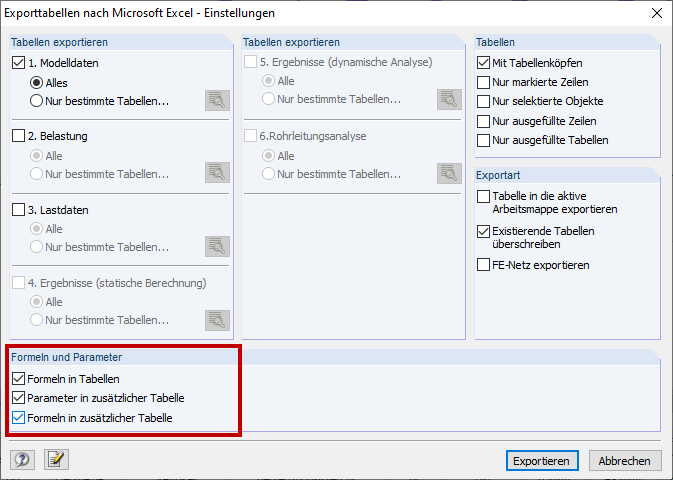

However, the parameter list and formulas can be exported to Excel by using the menu File → Export. For this, select the corresponding check boxes in the "Formulas and Parameters" dialog section of the "Export to Microsoft Excel - Settings" dialog box (Figure 01).

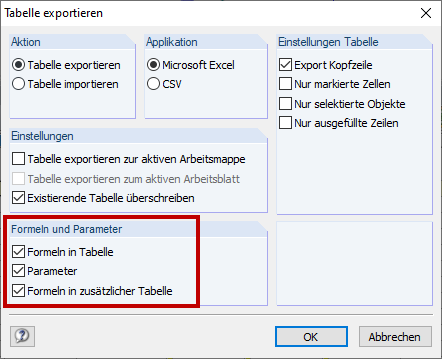

The export of the parameter list and formulas is also available in the "Export Table" dialog box (Figure 2), which can be opened by clicking the Excel button in the toolbar of the relevant table.

You could then add the Excel tables to the printout report as a text block, for example. This is shown in the video.
