Download the model of a steel hall with cold-formed Z-sections as purlins and open it with the structural frame & truss analysis software RSTAB.
This model has been used in the free webinar 'Designing Cold-Formed Steel Sections According to Eurocode 3' from April 30, 2020.
- Tips and Tricks Using Navigator and Printout Report in RFEM
- Steel Construction Calendar Day 2020 | Online
- Designing Cold-Formed Steel Sections According to Eurocode 3
- Eurocode 3 | Steel Design - Theory and Practical Examples According to DIN EN 1993-1-1
- Free Webinar | Verification of cold formed sections according to EC 3
- Designing Cold-Formed Steel Sections According to Eurocode 3

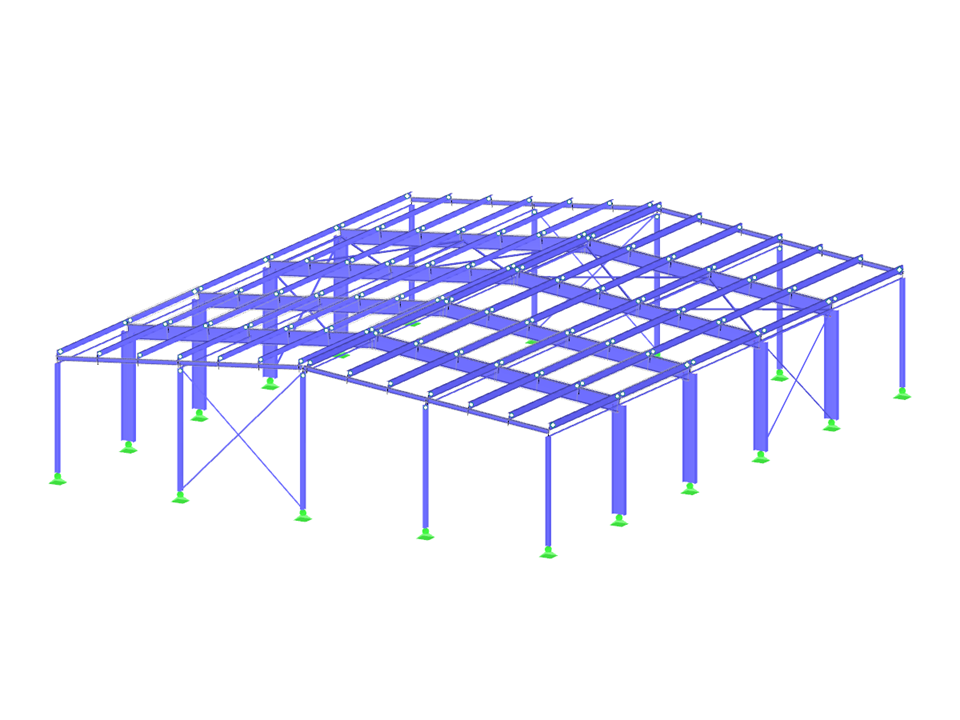

Steel Hall with Cold-Formed Z-Sections as Purlins and Design acc. EC 3 with British National Annex
| Number of Nodes | 121 |
| Number of Members | 225 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 38 |
| Number of Result Combinations | 2 |
| Total Weight | 16.369 tons |
| Dimensions | 67.26 x 83.66 x 18.37 feet |
| Program Version | 8.23.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
