Steel frame warping torsion design acc. to AISC 360-16. The webinar provides an introduction to warping torsion design considering the ASIC 360-16 and the AISC Design Guide 9. See links below.
Model Used in

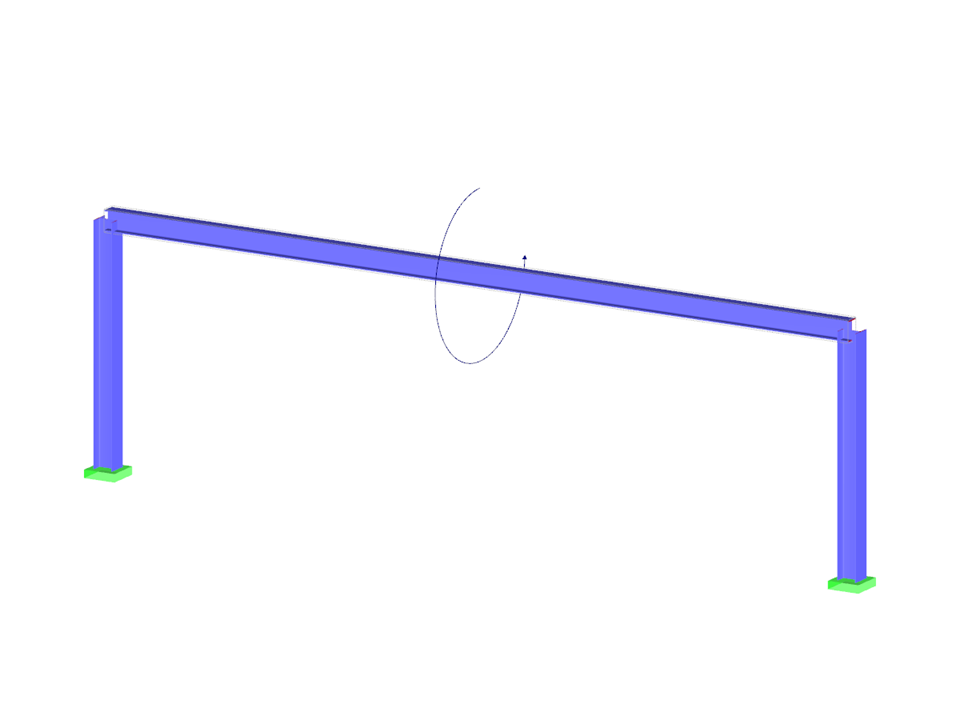

Steel Frame AISC 360-16 Warping Torsion Design
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 18 |
| Number of Result Combinations | 2 |
| Total Weight | 1.609 tons |
| Dimensions (Metric) | 12.192 x 3.658 x 0.000 m |
| Dimensions (Imperial) | 40 x 12 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
