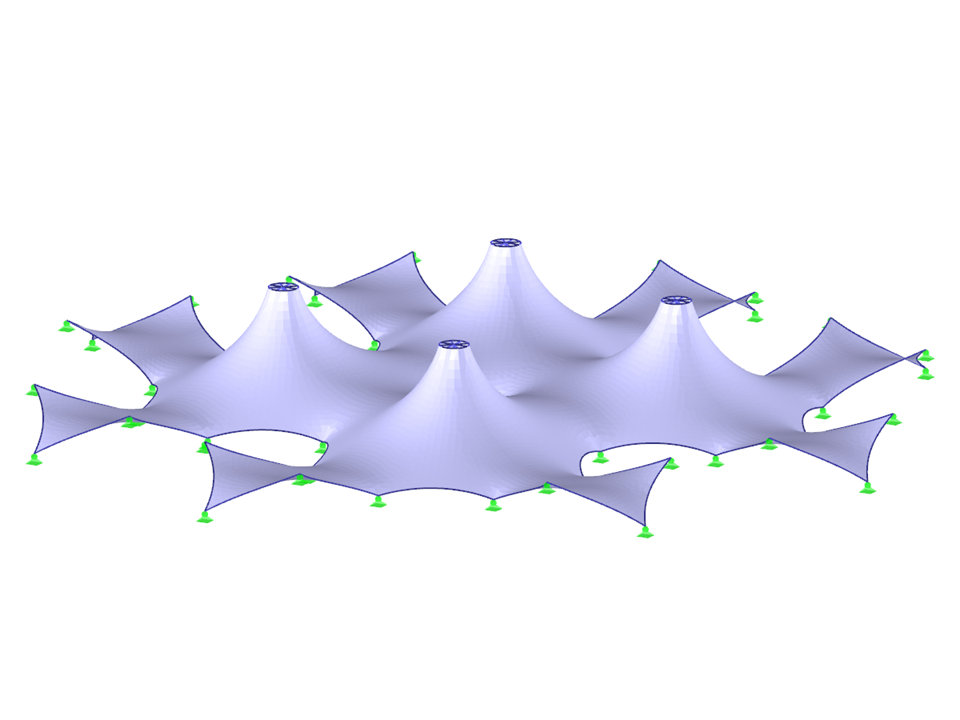

The model shows a deformed finite element mesh that has been optimized by form-finding. It represents an innovative membrane structure in the form of a tent structure. The modeling enables detailed analysis of the stress behavior and mechanical effects. The form-finding process achieves an aesthetically and statically balanced geometry. The model supports the analysis of complex stress states and material behavior.
Deformed FE Mesh: Membrane Tent
| Number of Nodes | 124 |
| Number of Lines | 169 |
| Number of Members | 112 |
| Number of Surfaces | 49 |
| Number of Load Cases | 1 |
| Total Weight | 5,724 t |
| Dimensions (Metric) | 62.926 x 62.926 x 10.434 m |
| Dimensions (Imperial) | 206.45 x 206.45 x 34.23 feet |
| Program Version | 5.21.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
