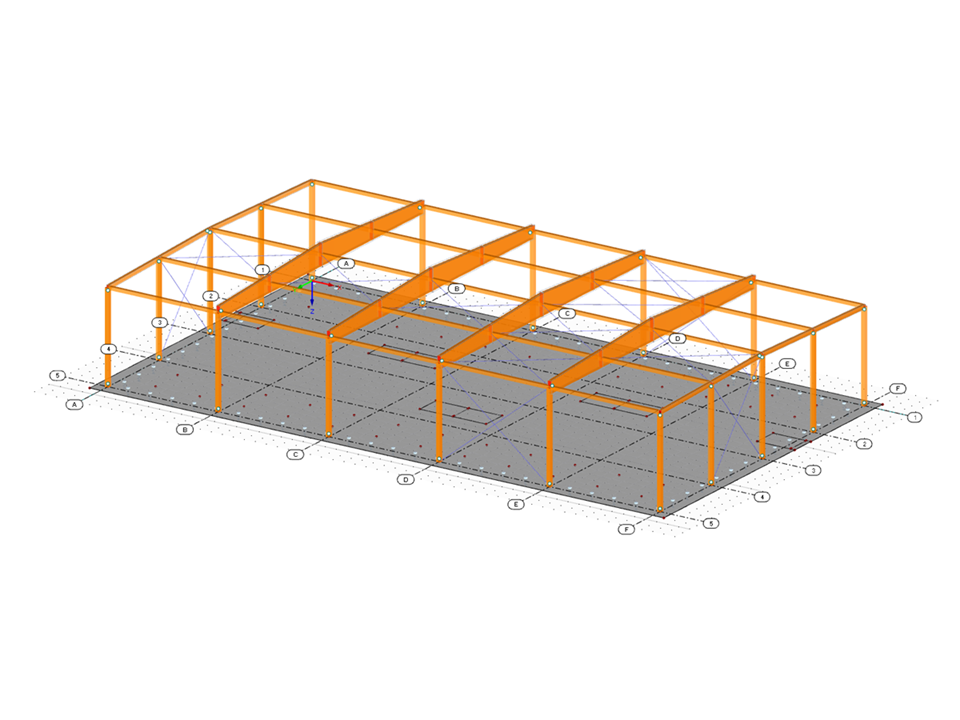

Timber Hall on Reinforced Concrete Base Plate
| Number of Nodes | 140 |
| Number of Lines | 132 |
| Number of Members | 91 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 118 |
| Number of Result Combinations | 4 |
| Total Weight | 200.069 tons |
| Dimensions | 85.3 x 13.78 x 49.21 feet |
