The model describes a road bridge with two lanes, where the load combination is considered according to EN 1991-2. It provides a realistic simulation of traffic load groups and delivers precise parameters for bridge construction. The technical concept supports engineers in assessing effects on road bridges. With a focus on realistic load simulation, the model is ideal for demanding analysis tasks.
Model Used in

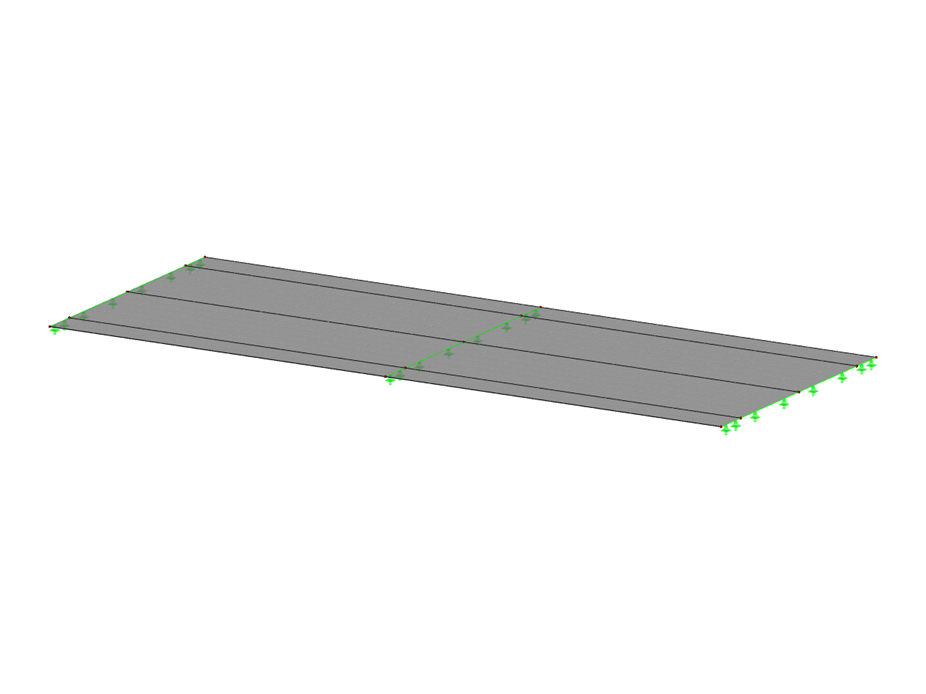

Two-Lane Road Bridge EN 1991-2
| Number of Nodes | 15 |
| Number of Lines | 22 |
| Number of Surfaces | 8 |
| Number of Load Cases | 23 |
| Number of Result Combinations | 15 |
| Total Weight | 120,000 t |
| Dimensions (Metric) | 20.000 x 8.000 x 0.000 m |
| Dimensions (Imperial) | 65.62 x 26.25 x 0 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
