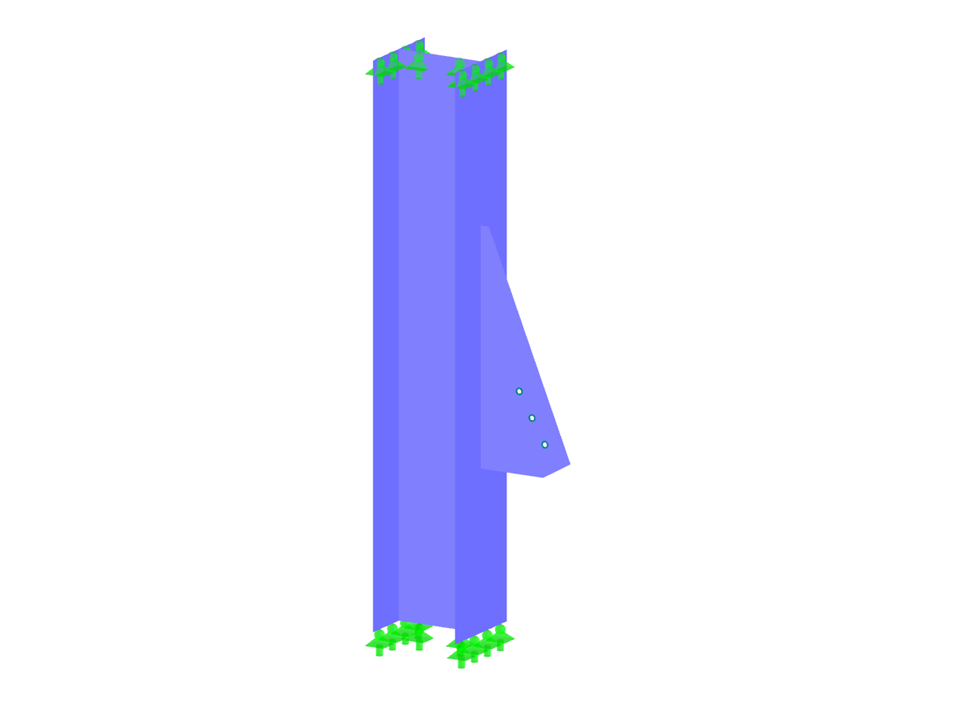

Column with Gusset Plate
Model to Download
The European standard EN 1993-1-8, Section 18.104.22.168. provides the user with a simplified method for the ultimate limit state design of fillet welds. If you want to dimension the weld for a surface model, you will be faced with a variety of results due to the nature of FEM calculations. This model was used to show how the force components can be determined from a model.
Model Used in
If you want to dimension the weld for a surface model, you will be faced with a variety of results due to the nature of FEM calculations. Therefore, we show in the following how to determine the force components from the model.
SHAPE-THIN determines the effective cross-sections according to EN 1993-1-3 and EN 1993-1-5 for cold-formed sections. You can optionally check the geometric conditions for the applicability of the standard specified in EN 1993‑1‑3, Section 5.2.
The effects of local plate buckling are considered according to the method of reduced widths and the possible buckling of stiffeners (instability) is considered for stiffened sections according to EN 1993-1-3, Section 5.5.
As an option, you can perform an iterative calculation to optimize the effective cross-section.
You can display the effective cross-sections graphically.
Read more about designing cold-formed sections with SHAPE-THIN and RF-/STEEL Cold-Formed Sections in this technical article: Design of a Thin-Walled, Cold-Formed C-Section According to EN 1993-1-3.
