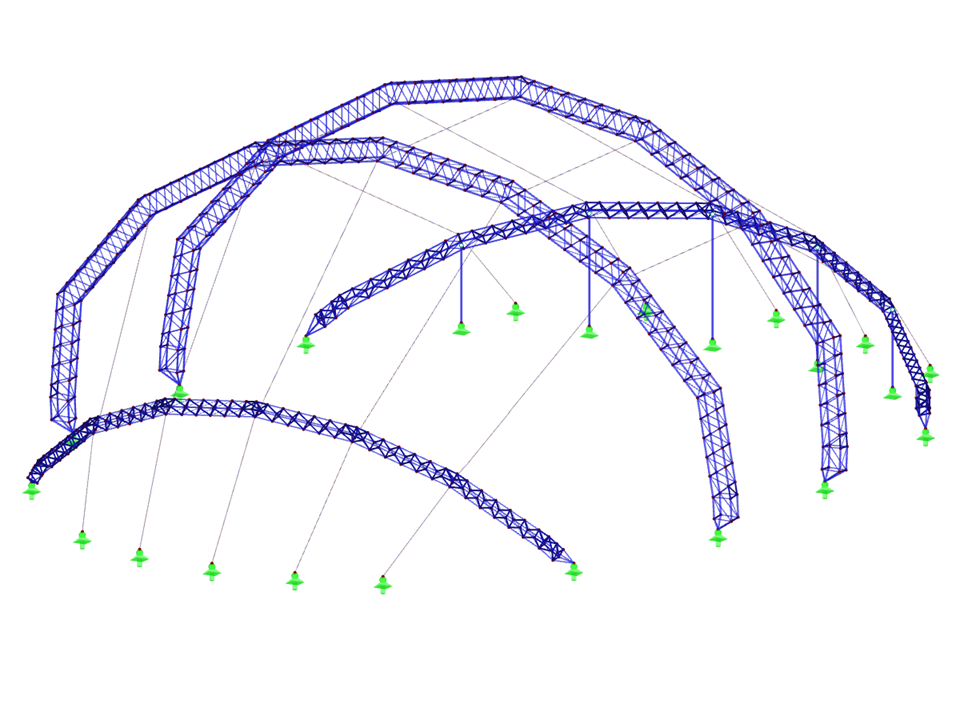

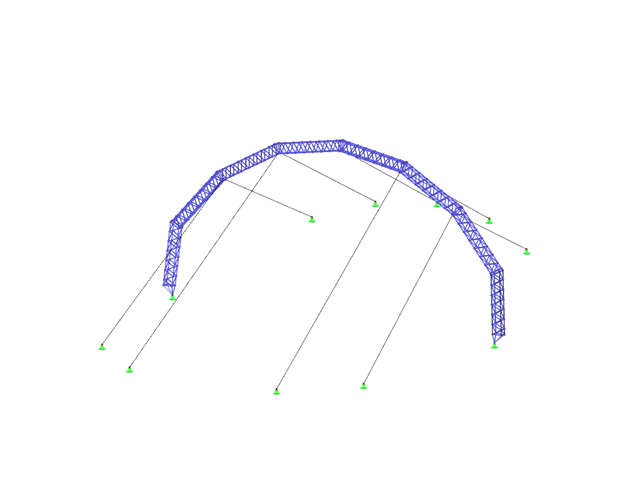

This model presents a tent supporting structure for a mobile theater tent with 1600 seats, which uses truss arches and optimized cable guying. In 2019, to mark the 50th anniversary of the first moon landing, a roadshow was conceived that would tour several US cities with this temporary structure. The structure was realized by formTL ingenieure für tragwerk und lightweight structures GmbH and impresses with its striking technical details, which are also visualized by a meaningful image. The display highlights the clearly structured truss elements and the innovative cable structure.

Model Used in

(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Mobile Theater Tent with Innovative Truss Arches

No Download Possible Customer Project / View Only
Number of Nodes 853
Number of Lines 2507
Number of Members 2507
Number of Load Cases 11
Total Weight 35.448 t
Dimensions (Metric) 58.801 x 85.044 x 27.309 m
Dimensions (Imperial) 192.92 x 279.02 x 89.6 feet
Program Version 5.23.02
